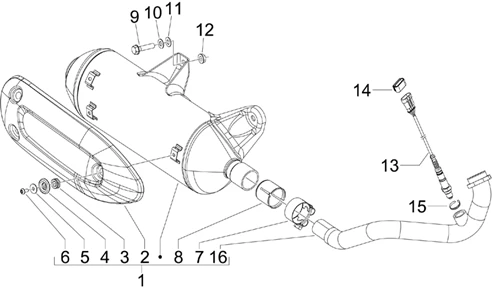

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/13/MP3_300_4T_4V_ie_LT_Ibrido_2010-2011_01.42.PNG)
1 |
B0133125 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/1/6/3/img/93163.jpg)
2 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" 125-250 BEVERLY, 125-300 MP3 IBRIDE -873413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
3 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/1/7/img/92917.jpg)
4 |
EXHAUST BUSHING/WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -834643 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
5 |
EXHAUST FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -827526 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
6 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
|
6 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/3/img/69333.jpg)
7 |
SILENCER CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 125-250-300 -8449404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/6/img/68596.jpg)
8 |
GRAPHITE BUSHING FOR SILENCER "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 MP3, VESPA GTS, BEVERLY, X8, X9, X7, X-EVOGILERA 125-250-300 NEXUS/APRILIA 125-250 ATLANTIC, SPORT-CITY, SR-MAX -8263885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/9/1/img/92991.jpg)
9 |
843939 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
10 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/7/0/img/69570.jpg)
11 |
848452 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
12 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/5/img/67855.jpg)
13 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -639806 More informationQuantity required : 1 |
||||||
|
14 |
639632 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
15 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/7/1/img/139671.jpg)
16 |
EXHAUST PIPE "PIAGGIO GENUINE PART" 250-300 MP3, X7, 250 X-EVO -1A007650- More informationQuantity required : 1 |
