Vehicle Exploded View - PIAGGIO MP3 300 4T 4V ie LT Ibrido 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

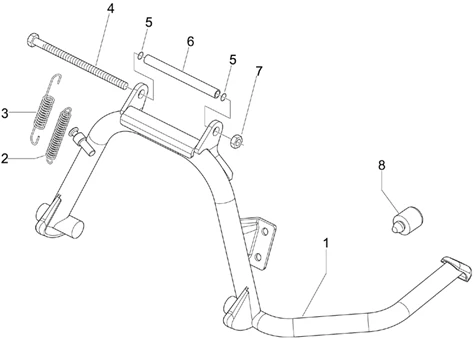

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/13/MP3_300_4T_4V_ie_LT_Ibrido_2010-2011_02.25.PNG)
1 |
650782 - BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/8/img/67208.jpg)
2 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581248 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/9/img/67209.jpg)
3 |
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -581249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
4 |
SCREW - FOR CENTRAL STAND 10X130 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -030115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
5 |
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
6 |
SPACER- FOR STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -582298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
7 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/6/img/146196.jpg)
8 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -1C002702 More informationQuantity required : 1 |
