Vehicle Exploded View - PIAGGIO MP3 300 4T 4V ie LT Ibrido 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

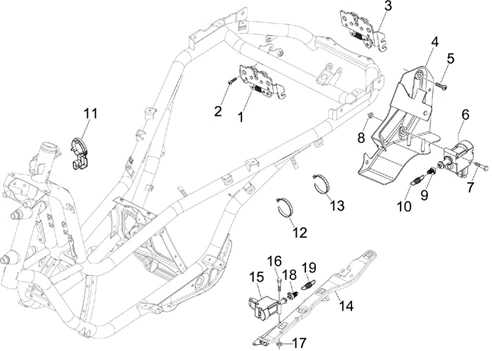

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/13/MP3_300_4T_4V_ie_LT_Ibrido_2010-2011_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
1 |
SADDLE LOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM023704 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/2/img/72942.jpg)
3 |
SADDLE LOCK "PIAGGIO GENUINE PART" MP3, X8, X-EVO, X7, X10, BEVERLY/GILERA NEXUS, FUOCO -CM023701 More informationQuantity required : 1 |
||||||
4 |
623795 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
5 |
SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
6 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
|
6 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
7 |
584121 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
8 |
577620 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
9 |
577128 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/0/5/3/img/92053.jpg)
10 |
675783 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/0/img/67790.jpg)
11 |
ANTENNA FOR CDI UNIT"PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -638534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
12 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
13 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
LEFT FOOTREST SUPPORT CROSS PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -6536685- More informationQuantity required : 1 |
||||||
|
15 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
|
15 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
|
16 |
584121 - VIS More informationQuantity required : 2 |
||||||
|
17 |
577620 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
577128 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
19 |
675783 - RESSORT More informationQuantity required : 1 |
