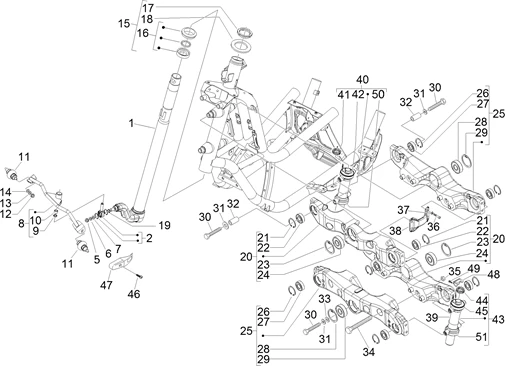

Vehicle Exploded View - PIAGGIO MP3 300 4T 4V ie LT Ibrido 2010-2011 PIAGGIO

Suspensions - roues : 04.02 FOURCHE/TUBE DIRECTION - ENSEMBLE BUTÉE DIR.
Fourche/tube direction - Ensemble butée dir.
Search
STEERING CONTROL TUBE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>/GILERA 500 FUOCO 2007> -58568R

1
P2R reference P2R reference 82170
Maker reference Maker reference 58568R

STEERING CONTROL TUBE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>/GILERA 500 FUOCO 2007> -58568R

More information

Quantity required : 1

STEERING TUBE CONTROL AXIS "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -622751

2
P2R reference P2R reference 84644
Maker reference Maker reference 622751

STEERING TUBE CONTROL AXIS "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -622751

More information

Quantity required : 1

967363 - ECROU

5
P2R reference P2R reference 70925
Maker reference Maker reference 967363

967363 - ECROU

More information

Quantity required : 1

006032 - RONDELLE S00603200

6
P2R reference P2R reference 73670
Maker reference Maker reference 0060325

006032 - RONDELLE S00603200

More information

Quantity required : 1

003038 - RONDELLA PIANA 8,4X18X2

7
P2R reference P2R reference 63773
Maker reference Maker reference 0030385

003038 - RONDELLA PIANA 8,4X18X2

More information

Quantity required : 1

COMPLETE STEERING CONTROL ROD "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -622744

8
P2R reference P2R reference 84643
Maker reference Maker reference 622744

COMPLETE STEERING CONTROL ROD "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -622744

More information

Quantity required : 1

GASKET RING FOR STEERING ROD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -167018

9
P2R reference P2R reference 113988
Maker reference Maker reference 167018

GASKET RING FOR STEERING ROD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -167018

More information

Quantity required : 2

ROLLER BEARING FOR STEERING ROD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -167016

10
P2R reference P2R reference 112144
Maker reference Maker reference 167016

ROLLER BEARING FOR STEERING ROD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -167016

More information

Quantity required : 2

STEERING BALL JOINT "PIAGGIO GENUINE PART" MP3 125 2006>2013/MP3 300 2009>2015/MP3 400 2007>2010/MP3 500 2001>2016 -666901

11
P2R reference P2R reference 90108
Maker reference Maker reference 666901

STEERING BALL JOINT "PIAGGIO GENUINE PART" MP3 125 2006>2013/MP3 300 2009>2015/MP3 400 2007>2010/MP3 500 2001>2016 -666901

More information

Quantity required : 2

MULTIPURPOSE WASHER (8,2x20x2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861

12
P2R reference P2R reference 65364
Maker reference Maker reference 0138615

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861

More information

Quantity required : 4

647494 - RONDELLE

13
P2R reference P2R reference 86701
Maker reference Maker reference 647494

647494 - RONDELLE

More information

Quantity required : 4

967363 - ECROU

14
P2R reference P2R reference 70925
Maker reference Maker reference 967363

967363 - ECROU

More information

Quantity required : 4

HEADSET "PIAGGIO GENUINE PART" 125-250-400 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -6019175

15
P2R reference P2R reference 83056
Maker reference Maker reference 6019175

HEADSET "PIAGGIO GENUINE PART" 125-250-400 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -6019175

More information

Quantity required : 1

HEADSET UPPER BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564257

16
P2R reference P2R reference 152886
Maker reference Maker reference 564257

HEADSET UPPER BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564257

More information

Quantity required : 1

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094

17
P2R reference P2R reference 65339
Maker reference Maker reference 01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094

More information

Quantity required : 1

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514

18
P2R reference P2R reference 63783
Maker reference Maker reference 00375145

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514

More information

Quantity required : 1

O'RING GASKET (8.73X1.78) "PIAGGIO GENUINE PART" -224202

19
P2R reference P2R reference 111207
Maker reference Maker reference 224202

O'RING GASKET (8.73X1.78) "PIAGGIO GENUINE PART" -224202

More information

Quantity required : 1

FRONT SUSPENSION ARM - LOWER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -646556

20
P2R reference P2R reference 86625
Maker reference Maker reference 646556

FRONT SUSPENSION ARM - LOWER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -646556

More information

Quantity required : 2

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

21
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

More information

Quantity required : 2

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345

22
P2R reference P2R reference 67481
Maker reference Maker reference 601345

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345

More information

Quantity required : 2

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

23
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

More information

Quantity required : 1

601467 - ROULEMENT

24
P2R reference P2R reference 82999
Maker reference Maker reference 601467

601467 - ROULEMENT

More information

Quantity required : 1

646561 - BRAS SUSPENSION AVT HAUT AR BAS

25
P2R reference P2R reference 86626
Maker reference Maker reference 646561

646561 - BRAS SUSPENSION AVT HAUT AR BAS

More information

Quantity required : 2

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

26
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

More information

Quantity required : 2

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345

27
P2R reference P2R reference 67481
Maker reference Maker reference 601345

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345

More information

Quantity required : 2

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

28
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

More information

Quantity required : 1

601467 - ROULEMENT

29
P2R reference P2R reference 82999
Maker reference Maker reference 601467

601467 - ROULEMENT

More information

Quantity required : 1

649392 - VIS

30
P2R reference P2R reference 86952
Maker reference Maker reference 649392

649392 - VIS

More information

Quantity required : 12

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

31
P2R reference P2R reference 65346
Maker reference Maker reference 0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

More information

Quantity required : 12

FRONT SUSPENSION PIV. BUSH"PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -621288

32
P2R reference P2R reference 83987
Maker reference Maker reference 621288

FRONT SUSPENSION PIV. BUSH"PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -621288

More information

Quantity required : 8

178790 - RONDELLE

33
P2R reference P2R reference 65789
Maker reference Maker reference 178790

178790 - RONDELLE

More information

Quantity required : 4

030113 - BOULON 273140

34
P2R reference P2R reference 65624
Maker reference Maker reference 0301135

030113 - BOULON 273140

More information

Quantity required : 8

564878 - ECROU

35
P2R reference P2R reference 67084
Maker reference Maker reference 564878

564878 - ECROU

More information

Quantity required : 8

975855 - VIS

36
P2R reference P2R reference 71063
Maker reference Maker reference 975855

975855 - VIS

More information

Quantity required : 16

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

37
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

More information

Quantity required : 16

646543 - SUPPORT

38
P2R reference P2R reference 86621
Maker reference Maker reference 646543

646543 - SUPPORT

More information

Quantity required : 4

1C003013 - TUBE

39
P2R reference P2R reference 151456
Maker reference Maker reference 1C003013

1C003013 - TUBE

More information

Quantity required : 2

HEADSET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO DROIT -6471835

40
P2R reference P2R reference 86680
Maker reference Maker reference 6471835

HEADSET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO DROIT -6471835

More information

Quantity required : 1

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094

41
P2R reference P2R reference 65339
Maker reference Maker reference 01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094

More information

Quantity required : 1

UPPER HEADSET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 -600750

42
P2R reference P2R reference 67455
Maker reference Maker reference 600750

UPPER HEADSET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 -600750

More information

Quantity required : 1

HEADSET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO GAUCHE -6007705

43
P2R reference P2R reference 82932
Maker reference Maker reference 6007705

HEADSET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO GAUCHE -6007705

More information

Quantity required : 1

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094

44
P2R reference P2R reference 65339
Maker reference Maker reference 01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094

More information

Quantity required : 1

UPPER HEADSET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 -600750

45
P2R reference P2R reference 67455
Maker reference Maker reference 600750

UPPER HEADSET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 -600750

More information

Quantity required : 1

SCREW - (5x22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662

46
P2R reference P2R reference 68770
Maker reference Maker reference 828662

SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662

More information

Quantity required : 2

CARDAN JOINT SMALL COVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -647202

47
P2R reference P2R reference 86683
Maker reference Maker reference 647202

CARDAN JOINT SMALL COVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -647202

More information

Quantity required : 2

624854 - BLOC

48
P2R reference P2R reference 85435
Maker reference Maker reference 624854

624854 - BLOC

More information

Quantity required : 2

969296 - BOULON

49
P2R reference P2R reference 70959
Maker reference Maker reference 969296

969296 - BOULON

More information

Quantity required : 2

600356 - RONDELLE

50
P2R reference P2R reference 82838
Maker reference Maker reference 600356

600356 - RONDELLE

More information

Quantity required : 1

600356 - RONDELLE

51
P2R reference P2R reference 82838
Maker reference Maker reference 600356

600356 - RONDELLE

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
