Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

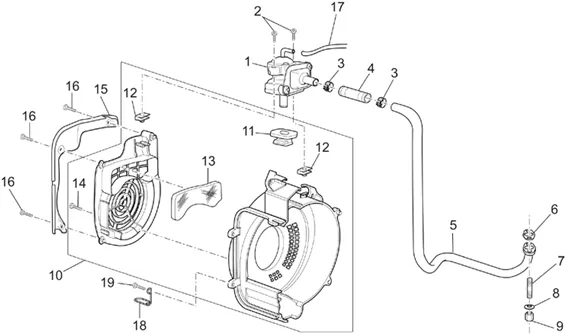

Moteur : 29.57 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_29.57.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/8/img/68878.jpg)
1 |
VOLET/VALVE " S. A. S. " OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-82996R More informationQuantity required : 1 |
||||||
2 |
015760-SCREW S01577400 More informationQuantity required : 3 |
||||||
|
3 |
Collier serr. Tube |
||||||
|
4 |
Tuyau de raccord |
||||||
|
5 |
844116-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/9/img/68989.jpg)
6 |
GASKET CANALISATION RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 4T/MAXI SCOOTER 125-832059 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
7 |
STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397 More informationQuantity required : 2 |
||||||
|
8 |
842449-SPRING More informationQuantity required : 2 |
||||||
|
9 |
843572 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/1/8/img/69118.jpg)
10 |
VOLUTE DE COOLING OEM PIAGGIO 125 VESPA LX, VESPA-S, FLY, LIBERTY, X8 STREET/APRILIA 125 SPORT-CITY, MOJITO-834473 More informationQuantity required : 1 |
||||||
|
11 |
833802-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/2/img/69012.jpg)
13 |
MOUSSE DE AIR FILTER OEM PIAGGIO 125-150 LIBERTY, FLY, X8 2008 <-832703 More informationQuantity required : 1 |
||||||
|
14 |
Vis taraud |
||||||
|
15 |
834476-COVER DE PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
16 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 3 |
||||||
|
17 |
845635-TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/8/img/68678.jpg)
18 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -827542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
19 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 5 |
