Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

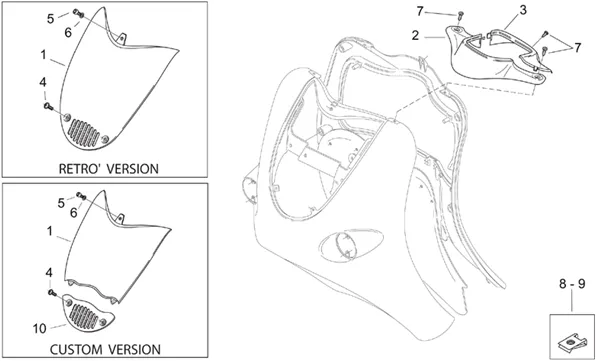

Chassis : 28.05 CARROSSERIE AV. - COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_28.05.PNG)
1 |
AP8248690 - COF.AV.P.BLANC CHALK; More informationQuantity required : 1 |
||||||
|
1 |
AP8249212 - COFFRE AV.P.NOIR MAT; More informationQuantity required : 1 |
||||||
|
1 |
AP8249822 - COFF.AV.N.APRILIA; More informationQuantity required : 1 |
||||||
|
1 |
Coffre av., bleu; |
||||||
|
1 |
AP8268411 - COFANO ANT.V.BRONZO ARR. More informationQuantity required : 1 |
||||||
|
2 |
AP8248184-CLAMP CHROME AV More informationQuantity required : 1 |
||||||
|
3 |
AP8248185 - COLLIER CHROME AR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
4 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
5 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
6 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
7 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
9 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 1 |
||||||
|
10 |
AP8248691-COVER CHROME More informationQuantity required : 1 |
