Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

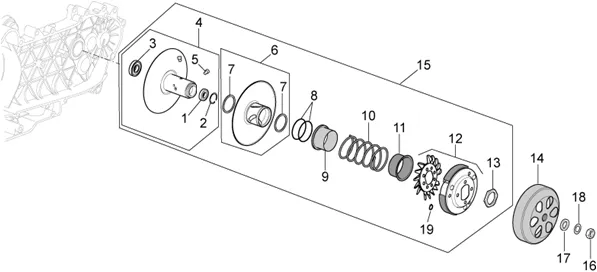

Moteur : 29.52 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_29.52.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/3/img/68523.jpg)
1 |
CAGE A AIGUILLES (20X29X18) DE TORQUE DRIVER OF TORQUE MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-82518R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/9/img/66629.jpg)
2 |
CLIPS/CICLIPS DE PULLEY ENTRAINEE OEM PIAGGIO 125-250-300-483226 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/7/img/68677.jpg)
3 |
BEARING (17X30X7) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-82753R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/7/img/68927.jpg)
4 |
HALF PULLEY RECEPTRICE (PARTIE FIXE) OEM PIAGGIO 125 MP3, X8, X9, X10, VESPA GTS, VESPA LX, YOURBAN, TYPHOON/GILERA 125 NEXUS, RUNNER/APRILIA 125 ATLANTIC, SCARABEO, SPORT-CITY, SR-MAX-830580 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/7/img/66577.jpg)
5 |
479415 - PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/2/img/68772.jpg)
5 |
SHAFT OF GUIDAGE DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-828717 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/4/img/70704.jpg)
6 |
FLASQUE MOBILE DE PULLEY RECEPTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 (LIVRE WITHOUT O-RING)-879002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/3/img/70703.jpg)
6 |
FLASQUE MOBILE DE PULLEY RECEPTRICE (LIVRE WITH O-RING) OEM PIAGGIO 150 LIBERTY, FLY, VESPA LX, VESPA-S 2009 >-878998 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/2/img/66392.jpg)
7 |
OIL SEAL (41X48X4) OEM PIAGGIO COMMON A LA RANGE-431089 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/2/img/66382.jpg)
8 |
GASKET OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-430585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/4/img/66394.jpg)
9 |
GUIDE INNER DE SPRING PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-4310935 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/2/img/70442.jpg)
10 |
SPRING CORRECTEUR DE COUPLE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-872877 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/5/img/66765.jpg)
11 |
GUIDE EXTERIEUR DE SPRING PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-487936 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/3/img/73333.jpg)
12 |
CLUTCH OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-CM161202 More informationQuantity required : 1 |
||||||
13 |
Bague |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/9/img/69309.jpg)
14 |
TAMBOUR D'EMBRAYAGE OEM PIAGGIO 125-250-300 MP3, BEVERLY, 125-250 X8, X9-EVO, X-EVO, X7/GILERA 125-250-300 NEXUS, 125 RUNNER 4T/APRILIA 125-250-300 SPORT-CITY-ONE, ATLANTIC-8440494 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/6/img/73336.jpg)
15 |
PULLEY RECEPTRICE OEM PIAGGIO 125 FLY 2005 >, LIBERTY 2005 >, TYPHOON 2012 >, X8 STREET 2004 > 2006, VESPA LX 2005 >, VESPA-S 2007 >/APRILIA 125 MOJITO 2003 >, SPORT-CITY ONE 2008 >-CM162401 More informationQuantity required : 1 |
||||||
|
15 |
CM162402-PULLEY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/8/img/73338.jpg)
15 |
PULLEY RECEPTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-CM162403 More informationQuantity required : 1 |
||||||
|
16 |
Écrou |
||||||
|
17 |
Entretoise |
||||||
|
18 |
Rondelle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
19 |
CLIPS/CIRCLIPS (9. 3) DE PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-006410 More informationQuantity required : 1 |
