Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

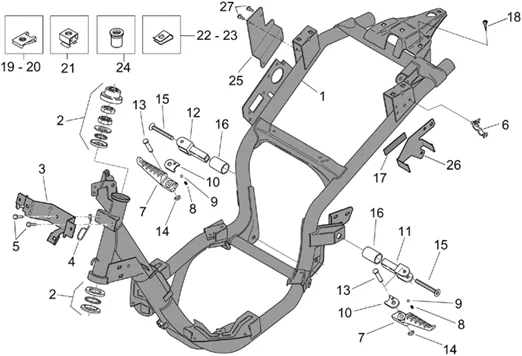

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_28.01.PNG)
1 |
AP8235091 - TELAIO CON CATAFORESI More informationQuantity required : 1 |
||||||
|
2 |
AP8203923 - SERIE DIRECTION COMPLETE More informationQuantity required : 1 |
||||||
|
3 |
AP8146537 - SUPPORTO CARROZZERIA SUP. More informationQuantity required : 1 |
||||||
|
4 |
AP8202159-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
5 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
6 |
AP8220269-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
7 |
PASSENGER FOOTREST (PAIR) "PIAGGIO GENUINE PART" 50-125 RS, TUONO, MX, FUTURA -AP8132812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
8 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
9 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
|
10 |
AP8134629 - PLAQUE FDC R-PIED; More informationQuantity required : 2 |
||||||
|
11 |
AP8134565 - PIVOT REPOSE-PIEDS PASSAGER D; More informationQuantity required : 1 |
||||||
|
12 |
AP8134565 - PIVOT REPOSE-PIEDS PASSAGER D; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/7/img/56997.jpg)
13 |
PIVOT REST-FEET OEM PIAGGIO APRILIA 50-125 RS, 50 EUROPA, CLASSIC-AP8221057 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
14 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 2 |
||||||
|
15 |
AP8152387-SCREW FHC More informationQuantity required : 2 |
||||||
|
16 |
AP8121403-ENTRETOIES ATT. REP-FEET P. More informationQuantity required : 2 |
||||||
|
17 |
AP8117073-ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
18 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
20 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
21 |
NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
22 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 8 |
||||||
|
23 |
AP8201764-CLIP FOR SCREW TARAUD More informationQuantity required : 7 |
||||||
|
24 |
AP8201457-RIVET More informationQuantity required : 2 |
||||||
|
25 |
AP8134954 - SUPPORTO CANISTER More informationQuantity required : 1 |
||||||
|
26 |
AP8104663 - SUPPORTO VALVOLA MULTIFUNZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
27 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
