Vehicle Exploded View - APRILIA MOJITO 125 2003-2007 APRILIA

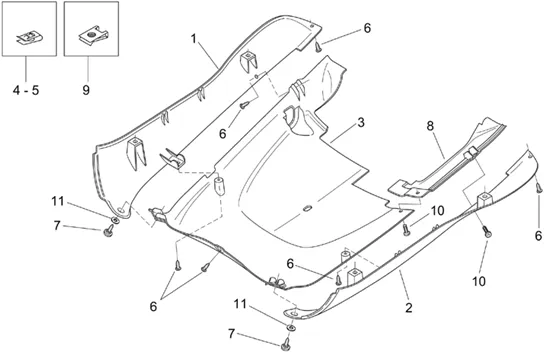

Chassis : 28.10 CARROS. CENT. - SOUS-REP-PIEDS
Carros. cent. - Sous-rep-pieds
Search
AP8149426 - FLANC SS-REP-D BLEU;

1
P2R reference P2R reference 50637
Maker reference Maker reference AP8149426

AP8149426-SIDE PANEL SS-REP-D BLUE

More information

Quantity required : 1

Flanc ss-rep-D bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8258117

Flanc ss-rep-D bleu;

AP8149411 - FLANC SS-REP-D NOIR;

1
P2R reference P2R reference 50628
Maker reference Maker reference AP8149411

AP8149411-SIDE PANEL SS-REP-D BLACK

More information

Quantity required : 1

AP8149412 - FLANC SS-REP-P.G NOIR;

2
P2R reference P2R reference 50629
Maker reference Maker reference AP8149412

AP8149412-SIDE PANEL SS-REP-P. G BLACK

More information

Quantity required : 1

AP8149427 - FLANC S-PL.G.P.BLEU;

2
P2R reference P2R reference 50638
Maker reference Maker reference AP8149427

AP8149427-SIDE PANEL S-PL. G. P. BLUE

More information

Quantity required : 1

Flanc s-pl.g.p.bleu;

2
P2R reference P2R reference
Maker reference Maker reference AP8258118

Flanc s-pl.g.p.bleu;

AP8139986 - PROT.INF.REP-P. NOIRE;

3
P2R reference P2R reference 49437
Maker reference Maker reference AP8139986

AP8139986-PROT. INF. REP-P. BLACK

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

4
P2R reference P2R reference 72157
Maker reference Maker reference AP8202449

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

More information

Quantity required : 4

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

5
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 6

SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351

6
P2R reference P2R reference 71975
Maker reference Maker reference AP8152351

SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351

More information

Quantity required : 6

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

7
P2R reference P2R reference 71881
Maker reference Maker reference AP8150425

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

More information

Quantity required : 2

AP8148005 - CACHE BEQUILLE LAT.

8
P2R reference P2R reference 50258
Maker reference Maker reference AP8148005

AP8148005 - CACHE BEQUILLE LAT.

More information

Quantity required : 1

AP8148262 - CACHE BEQUILLE G;

8
P2R reference P2R reference 50295
Maker reference Maker reference AP8148262

AP8148262 - CACHE BEQUILLE G;

More information

Quantity required : 1

NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381

9
P2R reference P2R reference 71177
Maker reference Maker reference AP8102381

NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381

More information

Quantity required : 2

AP8150359 - VIS

10
P2R reference P2R reference 50865
Maker reference Maker reference AP8150359

AP8150359-SCREW

More information

Quantity required : 2

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

11
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 2
