Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

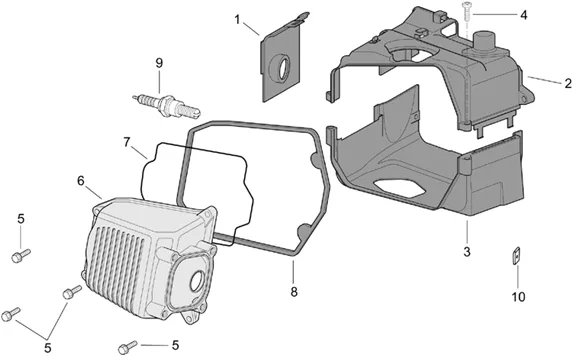

Moteur : 29.46 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_29.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/5/img/68535.jpg)
1 |
COVER SPARK PLUG OEM PIAGGIO 125 LIBERTY, X8, FLY, LX 2012 >-825368 More informationQuantity required : 1 |
||||||
2 |
871762-COIFFE CYLINDER More informationQuantity required : 1 |
||||||
|
3 |
871760-COIFFE CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
4 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
5 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/2/img/66662.jpg)
6 |
CYLINDER HEAD COVER "PIAGGIO GENUINE PART" 125 LIBERTY, ZIP, SKIPPER, VESPA ET4/APRILIA 125 MOJITO -484573 More informationQuantity required : 1 |
||||||
|
7 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/4/img/68534.jpg)
8 |
GASKET OF COVER CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC AIR-825364 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/5/img/66515.jpg)
9 |
SPARK PLUG CHAMPION RG4HC OEM PIAGGIO COMMON A TOUTE LA RANGE-438027 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/9/img/66529.jpg)
9 |
SPARK PLUG CHAMPION RG6YC OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-438073 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
10 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
