Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

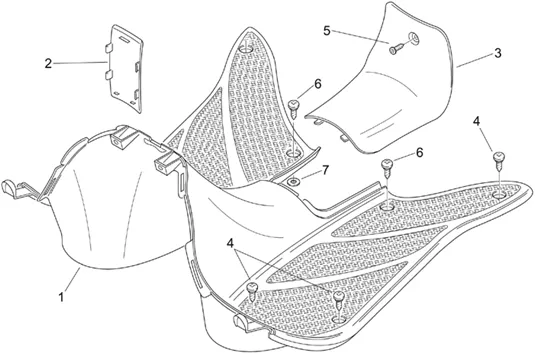

Chassis : 28.09 CARROS. CENT. - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_28.09.PNG)
1 |
AP8248969-PLANCHER REST-FEET BLACK More informationQuantity required : 1 |
||||||
|
1 |
AP8258132 - REPOSE-PIEDS BLEU; More informationQuantity required : 1 |
||||||
|
2 |
AP8248976-COUV. DONNEES HOM., BLACK More informationQuantity required : 1 |
||||||
|
2 |
AP8258134-COUV. DONNEES HOM., BLUE More informationQuantity required : 1 |
||||||
|
3 |
AP8139976 - COUVERCLE INSP., NOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8149534 - COUVERCLE INSPECTION BLEU; More informationQuantity required : 1 |
||||||
|
4 |
AP8152345-SCREW More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
5 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152351 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
6 |
SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
7 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 2 |
