Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

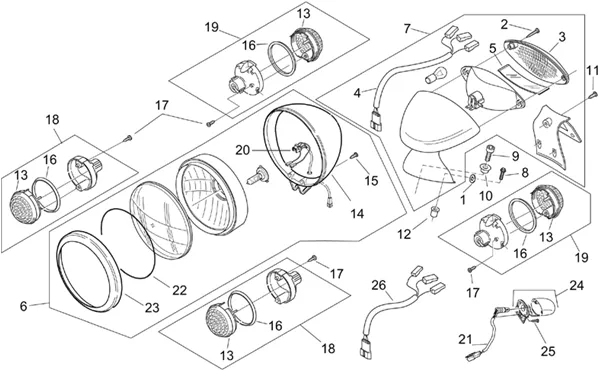

Chassis : 28.34 FEUX - CUSTOM EU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_28.34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
1 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 2 |
||||||
2 |
AP8224243-SCREW TARAUD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/1/4/img/57314.jpg)
3 |
AP8224229 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
4 |
AP8224227 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
5 |
AP8224228-VERRE LUMIERE PLATE More informationQuantity required : 1 |
||||||
|
6 |
AP8124673 - FANALE ANTERIORE More informationQuantity required : 1 |
||||||
|
6 |
AP8124893 - FANALE ANTERIORE More informationQuantity required : 1 |
||||||
|
7 |
AP8224177 - FEU ARR. CHROME; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
8 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
9 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
10 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
12 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 2 |
||||||
|
13 |
AP8224223-VITRE INDICATOR More informationQuantity required : 4 |
||||||
|
14 |
AP8224237-CALOTTE More informationQuantity required : 1 |
||||||
|
15 |
642143-SCREW AUTORANDEUSE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/1/8/img/57318.jpg)
16 |
BUSH CHROMEE INDICATOR OEM PIAGIO MOJITO 50/125 1999 > 2010-AP8224234 More informationQuantity required : 4 |
||||||
|
17 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
||||||
|
18 |
INDICATOR FRONT ORANGE OEM PIAGGIO 50 MOJITO, HABANA 2004 > 2007-AP8224171 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/8/6/img/57286.jpg)
19 |
FLASHER-REAR ORANGE "PIAGGIO GENUINE PART" 50 MOJITO, HABANA 2004>2007 -AP8224172 More informationQuantity required : 2 |
||||||
|
20 |
AP8127610-CABLAGGIO FANALE ANT. More informationQuantity required : 1 |
||||||
|
21 |
AP8124758-WIRING LUMIERE PLATE More informationQuantity required : 1 |
||||||
|
22 |
AP8220553-GASKET More informationQuantity required : 1 |
||||||
|
23 |
AP8224236-BUSH CHROMEE More informationQuantity required : 1 |
||||||
|
24 |
AP8124168-LAMP DE PLATE More informationQuantity required : 1 |
||||||
|
25 |
AP8150120-SCREW More informationQuantity required : 1 |
||||||
|
26 |
AP8127232-CABLAGGIO FANALE POST. More informationQuantity required : 1 |
