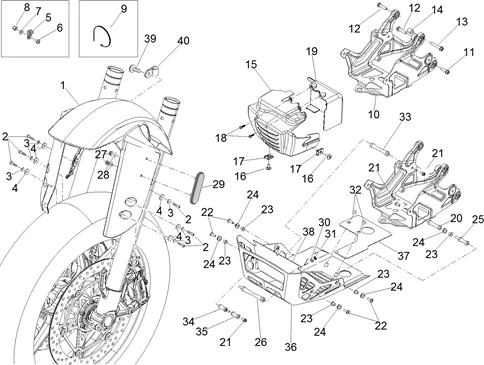

Carrosserie : 02.030 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/753/Caponord_1200_Rally_2015-2016_02.030.PNG)
1 |
GUARD-MUD FRONT OEM PIAGGIO APRILIA 1200 CAPONORD 2005 >-2B001431 More informationQuantity required : 1 |
||||||
|
1 |
2B0024475 - GARDE-BOUE AVANT USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
2 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 4 |
||||||
|
3 |
WASHER CANNELEE (8. 4X13) OEM PIAGGIO COMMON A LA RANGE-AP8152154 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
4 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/4/img/71164.jpg)
5 |
CLAMP BLACK (D8) OEM PIAGGIO COMMON A LA RANGE-AP8101890 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
6 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
7 |
WASHER NYLON/PLASTIQUE (D4) OEM PIAGGIO COMMON A LA RANGE-895916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 1 |
||||||
|
9 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
10 |
B045351-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
11 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
13 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/9/9/7/img/40997.jpg)
14 |
860667-SPACER More informationQuantity required : 1 |
||||||
|
15 |
2B000251-COVER More informationQuantity required : 1 |
||||||
|
16 |
AP8152239 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
17 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
18 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
|
19 |
2B000252-COVER More informationQuantity required : 1 |
||||||
|
20 |
860628-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
21 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
22 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
23 |
BUSH EN T INNER 5 MM OEM PIAGGIO COMMON A LA RANGE-AP8121795 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
24 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 5 |
||||||
|
25 |
2B001518-SPACER More informationQuantity required : 1 |
||||||
|
26 |
2B001516-SPACER More informationQuantity required : 1 |
||||||
|
27 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
28 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
29 |
CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
30 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
31 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/6/img/71746.jpg)
32 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8144081 More informationQuantity required : 1 |
||||||
|
33 |
2B001515-SPACER More informationQuantity required : 1 |
||||||
|
34 |
2B001517-SPACER More informationQuantity required : 1 |
||||||
|
35 |
893255-SPACER More informationQuantity required : 1 |
||||||
|
36 |
2B001434-PROTECTOR DE ENGINE More informationQuantity required : 1 |
||||||
|
37 |
2B002142-PROTECTOR PROTECTOR-CHALEUR More informationQuantity required : 1 |
||||||
|
38 |
2B001692-GRILLE DE RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
39 |
SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749 More informationQuantity required : 1 |
||||||
|
40 |
B046190-GUIDE-CABLE More informationQuantity required : 1 |
