Vehicle Exploded View - APRILIA CAPONORD 1200 Rally 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

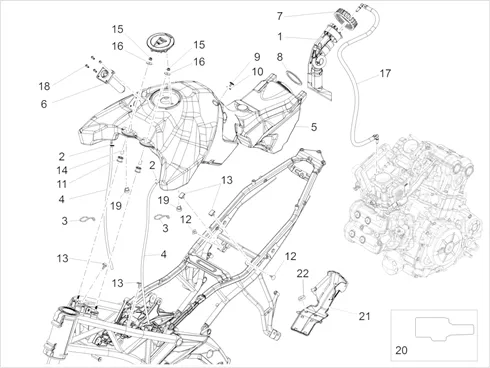

Réservoir : 09.010 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/753/Caponord_1200_Rally_2015-2016_09.010.PNG)
1 |
B045626-PUMP FUEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
2 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
|
3 |
AP8121889-GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
4 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 2 |
||||||
|
5 |
B045320-FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/0/9/img/142509.jpg)
6 |
JAUGE A FUEL OEM PIAGGIO APRILIA 1200 CAPONORD 2013 >-2D000354 More informationQuantity required : 1 |
||||||
|
7 |
AP8158359-BUSH More informationQuantity required : 1 |
||||||
|
8 |
854937-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/0/1/6/img/52016.jpg)
9 |
SCREW OF MOUNTING DE FUEL TANK OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD-AP8161127 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
10 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
11 |
RUBBER OEM PIAGGIO COMMON A LAGAMME-AP8144328 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
12 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
|
13 |
AP8120455-SILENT BLOCK STAND More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
14 |
BUSH SPACER (6X10X16) OEM PIAGGIO COMMON A LA RANGE-AP8121718 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/3/img/50823.jpg)
16 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150016 More informationQuantity required : 2 |
||||||
|
17 |
2B000477-FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
18 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
19 |
BUTEE RUBBER DE SEAT OEM PIAGGIO COMMON A LA RANGE-AP8126702 More informationQuantity required : 2 |
||||||
|
20 |
2B000362-PROTECTOR PROTECTOR-CHALEUR More informationQuantity required : 1 |
||||||
|
21 |
2B000523-PROTECTOR TANK More informationQuantity required : 1 |
||||||
|
22 |
RUBBER EN U OEM PIAGGIO COMMON A LA RANGE-AP8120937 More informationQuantity required : 6 |
