Vehicle Exploded View - APRILIA CAPONORD 1200 Rally 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

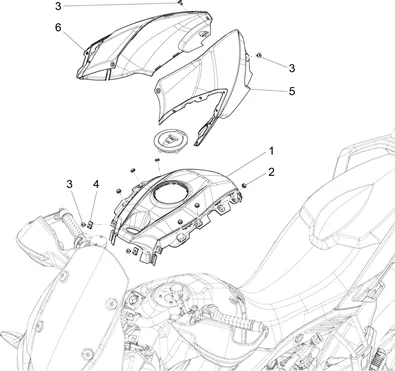

Carrosserie : 02.090 COUVRE-RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/753/Caponord_1200_Rally_2015-2016_02.090.PNG)
1 |
B044837 - COUVERCLE More informationQuantity required : 1 |
||||||
|
2 |
197551 - TAMPON More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
4 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
|
5 |
B04483900XG8 - COUVERCLE RESERVOIR ESSENCE G. More informationQuantity required : 1 |
||||||
|
5 |
B04483900XHA - COUVERCLE RESERVOIR ESSENCE G. More informationQuantity required : 1 |
||||||
|
5 |
B04483900XV7 - COUVERCLE RESERVOIR ESSENCE G. More informationQuantity required : 1 |
||||||
|
6 |
B04483800XG8 - COUVERCLE RESERVOIR ESSENCE D. More informationQuantity required : 1 |
||||||
|
6 |
B04483800XHA - COUVERCLE RESERVOIR ESSENCE D. More informationQuantity required : 1 |
||||||
|
6 |
B04483800XV7 - COUVERCLE RESERVOIR ESSENCE D. More informationQuantity required : 1 |
