Vehicle Exploded View - APRILIA CAPONORD 1200 Rally 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

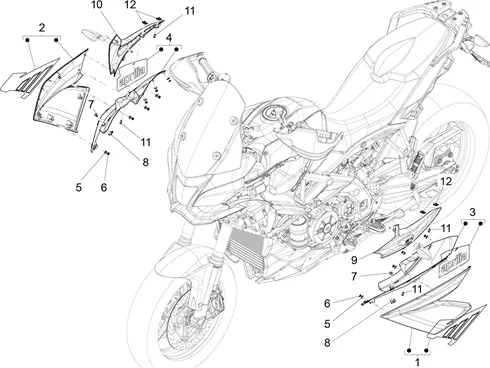

Carrosserie : 02.080 CARÈNE LATERAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/753/Caponord_1200_Rally_2015-2016_02.080.PNG)
1 |
2H000627000XV7-SIDE PANEL GAU More informationQuantity required : 1 |
||||||
|
1 |
2H000697000XG8-SIDE PANEL GAU More informationQuantity required : 1 |
||||||
|
1 |
2H000697000XHA-SIDE PANEL GAU More informationQuantity required : 1 |
||||||
|
2 |
2H000626000XV7-SIDE PANEL DRT. More informationQuantity required : 1 |
||||||
|
2 |
2H000696000XG8-SIDE PANEL DRT. More informationQuantity required : 1 |
||||||
|
2 |
2H000696000XHA-SIDE PANEL DRT. More informationQuantity required : 1 |
||||||
|
3 |
2H000629000XG8-COVER SIDE PANEL GAU. More informationQuantity required : 1 |
||||||
|
3 |
2H000629000XHA-COVER SIDE PANEL GAU. More informationQuantity required : 1 |
||||||
|
3 |
2H000629000XV7-COVER More informationQuantity required : 1 |
||||||
|
4 |
2H000628000XG8-COVER SIDE PANEL DRT. More informationQuantity required : 1 |
||||||
|
4 |
2H000628000XHA-COVER SIDE PANEL DRT. More informationQuantity required : 1 |
||||||
|
4 |
2H000628000XV7-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
5 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
6 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
7 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
9 |
B044823-BODY PANEL G * More informationQuantity required : 1 |
||||||
|
10 |
B044822-BODY PANEL D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
11 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 4 |
||||||
|
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
