Vehicle Exploded View - APRILIA CAPONORD 1200 Rally 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

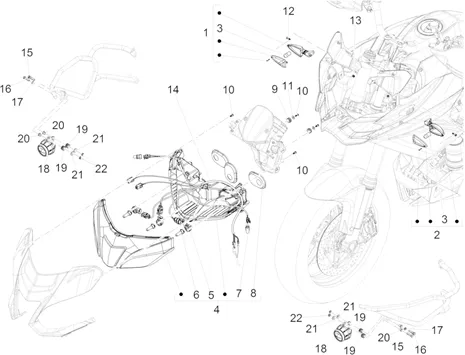

Feux - instruments : 08.010 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/753/Caponord_1200_Rally_2015-2016_08.010.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/4/4/img/39844.jpg)
1 |
FRONT RIGHT INDICATOR OEM PIAGGIO APRILIA 750-900 DORSODURO, SHIVER, 1200 CAPONORD, DORSODURO-854555 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/4/5/img/39845.jpg)
2 |
FRONT LEFT INDICATOR OEM PIAGGIO APRILIA 750 DORSODURO 2008 >, 900 DORSODURO 2017 >, 750 SHIVER 2007 >, 900 SHIVER 2017 >, 1200 CAPONORD 2013 >, DORSODURO 2010 >-854556 More informationQuantity required : 2 |
||||||
3 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/6/7/img/38267.jpg)
4 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO APRILIA 850 SRV 2012 >, 1000 RSV-4 2009 > 2015, 1200 CAPONORD 2015 >-2R000161 More informationQuantity required : 1 |
||||||
|
5 |
893930-DOOR-AMPOULE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/8/img/67898.jpg)
6 |
AMPOULE/LAMPE 12V 55W H11 OEM PIAGGIO COMMON A LA RANGE-640754 More informationQuantity required : 3 |
||||||
|
7 |
893929-LAMP DE POSITION More informationQuantity required : 2 |
||||||
|
8 |
894796-COIFFE HEADLAMP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
9 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
10 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
11 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 2 |
||||||
|
12 |
620344-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
14 |
858867-WIRING LAMP AV More informationQuantity required : 1 |
||||||
|
15 |
2B001405-SCREW REGLAGE More informationQuantity required : 2 |
||||||
|
16 |
2B002000-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
17 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 2 |
||||||
|
18 |
2B000487-HEADLAMP ANTIBROUILLARD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
19 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120223 More informationQuantity required : 4 |
||||||
|
20 |
AP8121790-" BUSH EN " " T " " " More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
21 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/0/7/img/127207.jpg)
22 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-GU92630207 More informationQuantity required : 4 |
