Vehicle Exploded View - APRILIA CAPONORD 1200 Rally 2015-2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

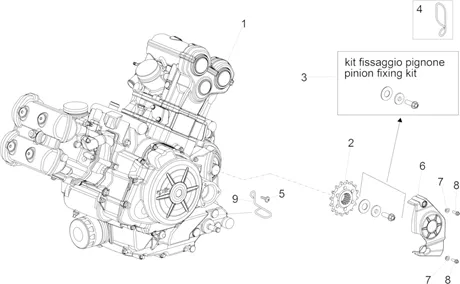

Moteur : 03.010 MOTEUR-GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/753/Caponord_1200_Rally_2015-2016_03.010.PNG)
1 |
CM1607075 - MOTEUR More informationQuantity required : 1 |
||||||
|
1 |
CM1607085-ENGINE 1200 CP MY 15 USA X RIC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/7/1/1/img/37711.jpg)
2 |
SPROCKET 17 TEETH OEM APRILIA 1200 CAPONORD-2B000220 More informationQuantity required : 1 |
||||||
|
3 |
KIT MOUNTING DE SPROCKET DE SORTIE DE BOX OEM APRILIA 750 DORSODURO, SHIVER-2R000246 More informationQuantity required : 1 |
||||||
|
4 |
AP8121889-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
5 |
AP8221114-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
6 |
856069-CASING SPROCKET, More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
7 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
|
9 |
AP8152055-SCREW More informationQuantity required : 1 |
