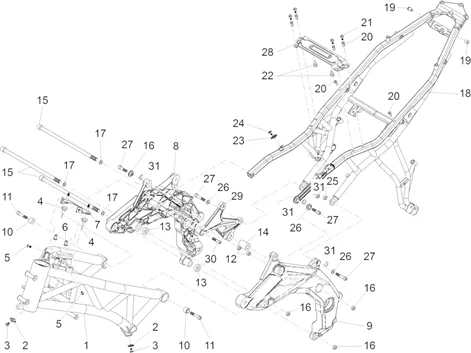

Vehicle Exploded View - APRILIA CAPONORD 1200 Rally 2015-2016 APRILIA

Chassis : 01.010 CHASSIS
Chassis
Search
2B001369000XNI - CHASSIS

1
P2R reference P2R reference 37816
Maker reference Maker reference 2B001369000XNI

2B001369000XNI-FRAME

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

2
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

3
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 2

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

4
P2R reference P2R reference 72275
Maker reference Maker reference AP8220238

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150537

5
P2R reference P2R reference 50920
Maker reference Maker reference AP8150537

SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150537

More information

Quantity required : 2

INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902

6
P2R reference P2R reference 71205
Maker reference Maker reference AP8102902

INSERT FILETEE ON FRAME OEM PIAGGIO COMMON A LA RANGE MOTO-AP8102902

More information

Quantity required : 2

B046009 - PATTE

7
P2R reference P2R reference 62645
Maker reference Maker reference B046009

B046009-BRACKET

More information

Quantity required : 1

SIDE PANEL/HALF FRAME RIGHT BLACK OEM APRILIA CAPONORD, DORSODURO, SHIVER-85153600XNB

8
P2R reference P2R reference 39122
Maker reference Maker reference 85153600XNB

SIDE PANEL/HALF FRAME RIGHT BLACK OEM APRILIA CAPONORD, DORSODURO, SHIVER-85153600XNB

More information

Quantity required : 1

SIDE PANEL/HALF FRAME LEFT BLACK OEM APRILIA CAPONORD, DORSODURO, SHIVER-85153700XNB

9
P2R reference P2R reference 39125
Maker reference Maker reference 85153700XNB

SIDE PANEL/HALF FRAME LEFT BLACK OEM APRILIA CAPONORD, DORSODURO, SHIVER-85153700XNB

More information

Quantity required : 1

853037 - DOUILLE

10
P2R reference P2R reference 39661
Maker reference Maker reference 853037

853037-BUSH

More information

Quantity required : 4

SCREW BTR (12X52) MOUNTING DE FRAME OEM PIAGGIO APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO-852165

11
P2R reference P2R reference 39482
Maker reference Maker reference 852165

SCREW BTR (12X52) MOUNTING DE FRAME OEM PIAGGIO APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO-852165

More information

Quantity required : 4

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

12
P2R reference P2R reference 66103
Maker reference Maker reference 271740

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

More information

Quantity required : 4

853036 - ENTRETOISE

13
P2R reference P2R reference 39660
Maker reference Maker reference 853036

853036-SPACER

More information

Quantity required : 2

896014 - ENTRETOISE

14
P2R reference P2R reference 42420
Maker reference Maker reference 896014

896014-SPACER

More information

Quantity required : 1

851784 - TIRANT PRISE MOTEUR;

15
P2R reference P2R reference 39277
Maker reference Maker reference 851784

851784-TIRANT PRISE ENGINE

More information

Quantity required : 3

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

16
P2R reference P2R reference 66103
Maker reference Maker reference 271740

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

More information

Quantity required : 3

WASHER PLATE (13X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8150101

17
P2R reference P2R reference 50837
Maker reference Maker reference AP8150101

WASHER PLATE (13X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8150101

More information

Quantity required : 3

2B001622 - ACCROCHE-SELLE

18
P2R reference P2R reference 37854
Maker reference Maker reference 2B001622

2B001622-ACCROCHE-SEAT

More information

Quantity required : 1

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

19
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531

More information

Quantity required : 2

RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8201755

20
P2R reference P2R reference 72142
Maker reference Maker reference AP8201755

RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8201755

More information

Quantity required : 6

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915

21
P2R reference P2R reference 42388
Maker reference Maker reference 895915

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915

More information

Quantity required : 4

CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001

22
P2R reference P2R reference 71383
Maker reference Maker reference AP8120001

CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

23
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

24
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

More information

Quantity required : 2

AP8152350 - ECROU

25
P2R reference P2R reference 50989
Maker reference Maker reference AP8152350

AP8152350-NUT

More information

Quantity required : 2

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

26
P2R reference P2R reference 71809
Maker reference Maker reference AP8150017

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

More information

Quantity required : 3

SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236

27
P2R reference P2R reference 71842
Maker reference Maker reference AP8150236

SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236

More information

Quantity required : 2

B045316 - PATTE

28
P2R reference P2R reference 62542
Maker reference Maker reference B045316

B045316-BRACKET

More information

Quantity required : 1

851541 - SUPPORT

29
P2R reference P2R reference 39127
Maker reference Maker reference 851541

851541-BRACKET

More information

Quantity required : 1

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195

30
P2R reference P2R reference 71836
Maker reference Maker reference AP8150195

SCREW BTR (10X30) OEM PIAGGIO COMMON A LA RANGE-AP8150195

More information

Quantity required : 1

WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272

31
P2R reference P2R reference 97084
Maker reference Maker reference AP8150272

WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272

More information

Quantity required : 4
