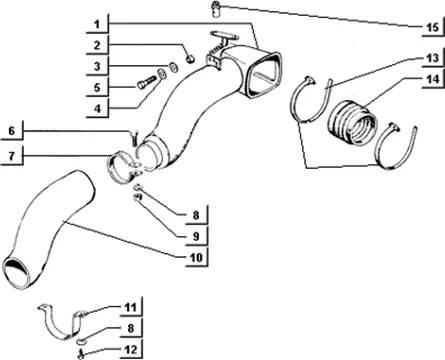

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004 PIAGGIO VU

Moteur : T66 CONDUIT AIR CHAUD
Conduit air chaud
Search
216191 - JOINT

1
P2R reference P2R reference 113042
Maker reference Maker reference 216191

216191 GASKET

More information

Quantity required : 1

CONVOGL.ARIA C

1
P2R reference P2R reference
Maker reference Maker reference 2323155

CONVOGL.ARIA C

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

2
P2R reference P2R reference 65474
Maker reference Maker reference 0202065

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

More information

Quantity required : 2

219026 - TIRANT

2
P2R reference P2R reference 114779
Maker reference Maker reference 219026

219026 TIRANT

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

3
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 2

056825 - PASSE CABLE

3
P2R reference P2R reference 110573
Maker reference Maker reference 0568255

056825 GUIDE CABLE

More information

Quantity required : 1

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

4
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

More information

Quantity required : 3

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

4
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 2

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

5
P2R reference P2R reference 63850
Maker reference Maker reference 0083725

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

More information

Quantity required : 3

SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087

5
P2R reference P2R reference 65638
Maker reference Maker reference 0310875

SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087

More information

Quantity required : 2

219021 - RACCORD

6
P2R reference P2R reference 117120
Maker reference Maker reference 219021

219021 FITTING

More information

Quantity required : 1

SCREW TH (4X45) OEM PIAGGIO COMMON A LA RANGE-658279

6
P2R reference P2R reference 110312
Maker reference Maker reference 031040

SCREW TH (4X45) OEM PIAGGIO COMMON A LA RANGE-658279

More information

Quantity required : 1

219024 - RESSORT

7
P2R reference P2R reference 110567
Maker reference Maker reference 219024

219024 SPRING

More information

Quantity required : 1

216353 - COLLIER

7
P2R reference P2R reference 110603
Maker reference Maker reference 216353

216353 CLAMP

More information

Quantity required : 1

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

8
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

More information

Quantity required : 4

RESSORT

8
P2R reference P2R reference
Maker reference Maker reference 219025

RESSORT

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

9
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

More information

Quantity required : 1

214163 - ETRANGLEUR AIR CHAUD

9
P2R reference P2R reference 112182
Maker reference Maker reference 214163

214163 ETRANGLEUR AIR CHAUD

More information

Quantity required : 1

251725 - TUYAU

10
P2R reference P2R reference 117355
Maker reference Maker reference 251725

251725 - TUYAU

More information

Quantity required : 1

215018 - DEMI COLLIER

11
P2R reference P2R reference 110978
Maker reference Maker reference 215018

215018 HALF CLAMP

More information

Quantity required : 1

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

12
P2R reference P2R reference 63850
Maker reference Maker reference 0083725

SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372

More information

Quantity required : 2

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

13
P2R reference P2R reference 66017
Maker reference Maker reference 257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

More information

Quantity required : 1

189193 - TUYAU ATD T1

14
P2R reference P2R reference 119611
Maker reference Maker reference 189193

189193 - TUYAU ATD T1

More information

Quantity required : 1

15
P2R reference P2R reference
Maker reference Maker reference 1535135
