Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

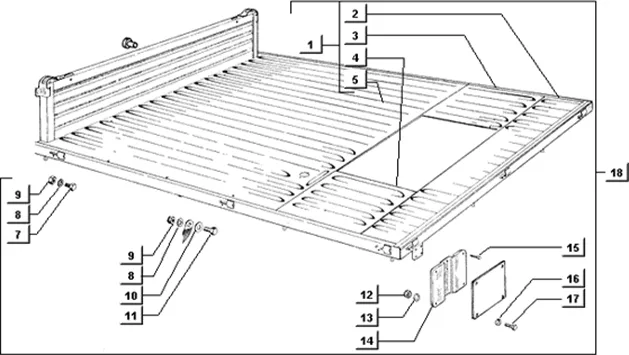

Châssis : T121 BENNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/331/Ape_TM_703_Diesel_FL2_422CC_1997-2004_T121_20251008095239.PNG)
1 |
PIANALE CPI (T |
||||||
|
1 |
|
||||||
|
2 |
1882826 PARTIE AR PLATEAU More informationQuantity required : 1 |
||||||
|
3 |
1882776 - RIDELLE More informationQuantity required : 1 |
||||||
|
4 |
1882785 - PARTIE LAT G More informationQuantity required : 1 |
||||||
|
5 |
1882766 PARTE ANT. PAV. More informationQuantity required : 1 |
||||||
|
6 |
TAMPON |
||||||
|
6 |
186323 SILENT BLOC More informationQuantity required : 2 |
||||||
|
7 |
031117-BOLT S03111700 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 15 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
9 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 15 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
10 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
11 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
12 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
13 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 4 |
||||||
|
14 |
MONOGRAMME |
||||||
|
14 |
567999 BADGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
15 |
SCREW PARKER (4. 8X9. 5) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008265 More informationQuantity required : 4 |
||||||
|
16 |
003055-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/8/img/65338.jpg)
17 |
SCREW HEAD FENDUE (5X14) OEM PIAGGIO COMMON A LA RANGE-010047 More informationQuantity required : 4 |
||||||
|
18 |
|
||||||
|
18 |
PIANALE CPL SP |
