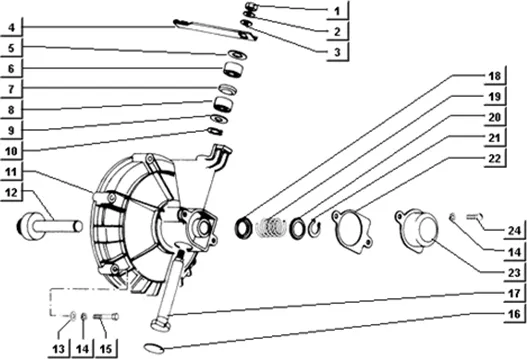

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004 PIAGGIO VU

Moteur : T31 COUVERCLE D'EMBRAYAGE (GUIDON)
Couvercle d'embrayage (guidon)
Search
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

1
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

2
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 1

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

3
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 1

L5271191 - LEVIER D'EMBRAYAGE

4
P2R reference P2R reference 114110
Maker reference Maker reference L5271191

L5271191 LEVER D'EMBRAYAGE

More information

Quantity required : 1

L7352056 - RONDELLE

5
P2R reference P2R reference 151156
Maker reference Maker reference L7352056

L7352056 WASHER

More information

Quantity required : 1

231290 - DOUILLE

6
P2R reference P2R reference 65964
Maker reference Maker reference 231290

231290 - DOUILLE

More information

Quantity required : 1

285591 - BAGUE ETANCHEITEE

7
P2R reference P2R reference 66150
Maker reference Maker reference 285591

285591-BUSH ETANCHEITEE

More information

Quantity required : 1

231290 - DOUILLE

8
P2R reference P2R reference 65964
Maker reference Maker reference 231290

231290 - DOUILLE

More information

Quantity required : 1

RONDELLE

9
P2R reference P2R reference
Maker reference Maker reference 238727

RONDELLE

CLIPS/CIRCLIPS 13. 8 OEM PIAGGIO COMMON A LA RANGE-006415

10
P2R reference P2R reference 63813
Maker reference Maker reference 0064155

CLIPS/CIRCLIPS 13. 8 OEM PIAGGIO COMMON A LA RANGE-006415

More information

Quantity required : 1

L2630002 - COUVERCLE EMBRAYAGE

11
P2R reference P2R reference 122193
Maker reference Maker reference L2630002

L2630002 - COUVERCLE EMBRAYAGE

More information

Quantity required : 1

2387246 - GRUPPO REGGISP

12
P2R reference P2R reference 121737
Maker reference Maker reference 2387246

2387246 GRUPPO REGGISP *

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

13
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 6

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

14
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 8

030057 - VIS

15
P2R reference P2R reference 65609
Maker reference Maker reference 0300575

030057-SCREW

More information

Quantity required : 6

238731 - BOUCHON

16
P2R reference P2R reference 112214
Maker reference Maker reference 238731

238731 CAP

More information

Quantity required : 1

L1015075 - ALBERINO

17
P2R reference P2R reference 116588
Maker reference Maker reference L1015075

L1015075 - ALBERINO

More information

Quantity required : 1

CUVETTE ATD-T1

18
P2R reference P2R reference
Maker reference Maker reference 238732

CUVETTE ATD-T1

RESSORT

19
P2R reference P2R reference
Maker reference Maker reference 238734

RESSORT

238733 - SCODELLINO SUP

20
P2R reference P2R reference 134645
Maker reference Maker reference 238733

238733 - SCODELLINO SUP

More information

Quantity required : 1

CLIPS/CIRCLIPS 13. 8 OEM PIAGGIO COMMON A LA RANGE-006415

21
P2R reference P2R reference 63813
Maker reference Maker reference 0064155

CLIPS/CIRCLIPS 13. 8 OEM PIAGGIO COMMON A LA RANGE-006415

More information

Quantity required : 1

JOINT

22
P2R reference P2R reference
Maker reference Maker reference 238735

JOINT

238736 - BOUCHON

23
P2R reference P2R reference 113363
Maker reference Maker reference 238736

238736 CAP

More information

Quantity required : 1

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

24
P2R reference P2R reference 109085
Maker reference Maker reference 1A003108

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

More information

Quantity required : 2

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

24
P2R reference P2R reference 109085
Maker reference Maker reference 0083755

SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108

More information

Quantity required : 2
