Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004 PIAGGIO VU

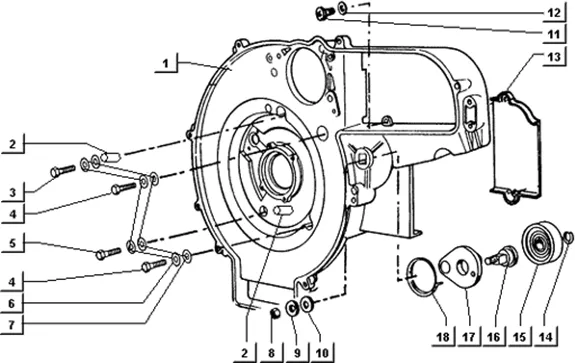

Moteur : T25 CANALISATION DU VENTILATEUR
Canalisation du ventilateur
Search
2882813 - CHIOCCIOLA VEN

1
P2R reference P2R reference 122519
Maker reference Maker reference 2882813

2882813 CHIOCCIOLA VEN

More information

Quantity required : 1

168409 - GRANO DI RIFER

2
P2R reference P2R reference 112751
Maker reference Maker reference 168409

168409 GRANO DI RIFER

More information

Quantity required : 1

SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591

3
P2R reference P2R reference 69355
Maker reference Maker reference 845591

SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591

More information

Quantity required : 2

SCREW FLANGE BTR (8X60) OEM PIAGGIO COMMON A LA RANGE-018583

4
P2R reference P2R reference 65444
Maker reference Maker reference 0185835

SCREW FLANGE BTR (8X60) OEM PIAGGIO COMMON A LA RANGE-018583

More information

Quantity required : 2

SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921

5
P2R reference P2R reference 67371
Maker reference Maker reference 598921

SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921

More information

Quantity required : 1

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

6
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 1

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

7
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058

More information

Quantity required : 1

NUT (10X1. 5) OEM PIAGGIO COMMON A LA RANGE-015252

8
P2R reference P2R reference 65377
Maker reference Maker reference 0152525

NUT (10X1. 5) OEM PIAGGIO COMMON A LA RANGE-015252

More information

Quantity required : 1

007620 - RESSORT

9
P2R reference P2R reference 109996
Maker reference Maker reference 0076205

007620 - RESSORT

More information

Quantity required : 1

235779 - RONDELLE

10
P2R reference P2R reference 110562
Maker reference Maker reference 235779

235779 WASHER

More information

Quantity required : 1

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-015759

11
P2R reference P2R reference 65392
Maker reference Maker reference 0157595

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-015759

More information

Quantity required : 2

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

12
P2R reference P2R reference 63838
Maker reference Maker reference 0069665

WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966

More information

Quantity required : 2

236122 - TEGOLINO CON P

13
P2R reference P2R reference 115566
Maker reference Maker reference 236122

236122 TEGOLINO CON P

More information

Quantity required : 1

CLIPS/CIRCLIPS (10. 9) OEM PIAGGIO COMMUNUN A LA RANGE-006412

14
P2R reference P2R reference 63812
Maker reference Maker reference 0064125

CLIPS/CIRCLIPS (10. 9) OEM PIAGGIO COMMUNUN A LA RANGE-006412

More information

Quantity required : 1

4304886 - POULIE

15
P2R reference P2R reference 119400
Maker reference Maker reference 4304886

4304886 PULLEY

More information

Quantity required : 1

236121 - PERNO

16
P2R reference P2R reference 117370
Maker reference Maker reference 236121

236121 PERNO

More information

Quantity required : 1

236118 - PLAQUE

17
P2R reference P2R reference 115484
Maker reference Maker reference 236118

236118 PLATE

More information

Quantity required : 1

236120 - RESSORT ATD-T1

18
P2R reference P2R reference 111468
Maker reference Maker reference 236120

236120 SPRING ATD-T1

More information

Quantity required : 1
