Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004 PIAGGIO VU

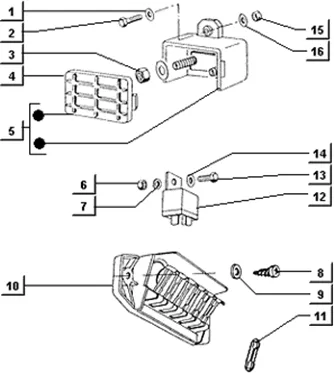

Connexions électriques : T118 BOITE DE DERIVATION-MICROTELERUPTEUR-PLAQUE A BORNES
Boite de derivation-microtelerupteur-plaque a bornes
Search
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

1
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 1

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

2
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 1

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

3
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

4
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

B006058 - SCATOLA DI DER

5
P2R reference P2R reference 114755
Maker reference Maker reference B006058

B006058 SCATOLA DI DER

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

6
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

7
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 1

SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455

8
P2R reference P2R reference 63855
Maker reference Maker reference 0084555

SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455

More information

Quantity required : 2

003055 - RONDELLE

9
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055-WASHER

More information

Quantity required : 2

125322 - BORNE

10
P2R reference P2R reference 114717
Maker reference Maker reference 125322

125322 BORNE

More information

Quantity required : 1

127619 - PLAQUE A BORNES

10
P2R reference P2R reference 114670
Maker reference Maker reference 127619

127619 PLATE A BORNES

More information

Quantity required : 1

FUSE ROUND 8A OEM PIAGGIO COMMON A LA RANGE-0249672

11
P2R reference P2R reference 65604
Maker reference Maker reference 02496725

FUSE ROUND 8A OEM PIAGGIO COMMON A LA RANGE-0249672

More information

Quantity required : 1

RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R

12
P2R reference P2R reference 67258
Maker reference Maker reference 58246R

RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R

More information

Quantity required : 1

031084 - BOULON

13
P2R reference P2R reference 65636
Maker reference Maker reference 0310845

031084-BOLT

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

14
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

15
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

16
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 1
