Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

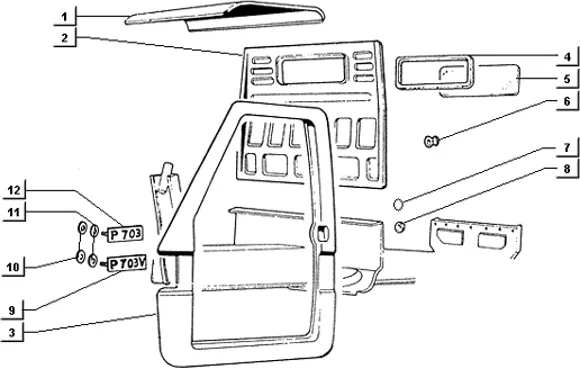

Châssis : T55 PIECES COMPOSANT LE CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/331/Ape_TM_703_Diesel_FL2_422CC_1997-2004_T55_20251008095437.PNG)
1 |
2416435 PAVILLON CABINE More informationQuantity required : 1 |
||||||
|
2 |
1949485 PANEL AR More informationQuantity required : 1 |
||||||
|
3 |
2416625 - LOGEMENT PORTE G More informationQuantity required : 1 |
||||||
|
3 |
2416645 - LOGEMENT PORTE D More informationQuantity required : 1 |
||||||
|
4 |
212493 GASKET GLACE AR More informationQuantity required : 1 |
||||||
|
5 |
212492 GLACE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/7/img/65787.jpg)
6 |
GUIDE CABLE DE HOSE COOLING OEM PIAGGIO COMMON A LA RANGE-178610 More informationQuantity required : 1 |
||||||
|
7 |
199162 - MONOGRAMME More informationQuantity required : 1 |
||||||
|
8 |
105392 GUIDE CABLE More informationQuantity required : 1 |
||||||
|
9 |
MONOGRAMME P703V |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/6/img/63846.jpg)
10 |
PLATE/CLIPS ELASTIC OEM PIAGGIO COMMON A LA RANGE-008108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/7/8/img/109778.jpg)
11 |
GASKET RUBBER (3. 8X9X3. 5) OEM PIAGGIO COMMON A LA RANGE-190479 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
