Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel FL2 422CC 1997-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

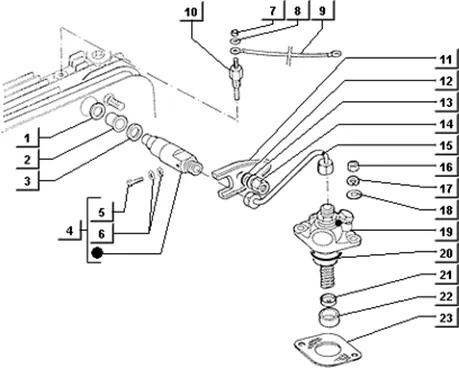

Moteur : T12 POMPE À INJECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/331/Ape_TM_703_Diesel_FL2_422CC_1997-2004_T12_20251008094415.PNG)
1 |
168076 GASKET More informationQuantity required : 1 |
||||||
|
2 |
167755 BUSSOLA ROMPIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/8/img/65768.jpg)
3 |
GASKET CUIVRE SONDE DE TEMPERATURE COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-168077 More informationQuantity required : 1 |
||||||
|
4 |
168078 - INJECTEUR ATD-T1 More informationQuantity required : 1 |
||||||
|
5 |
RACCORD |
||||||
|
6 |
224568-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
7 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
8 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 1 |
||||||
|
9 |
Clé |
||||||
|
10 |
438036 - BOUGIE More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
13 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/7/img/65377.jpg)
14 |
NUT (10X1. 5) OEM PIAGGIO COMMON A LA RANGE-015252 More informationQuantity required : 1 |
||||||
|
15 |
224242 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
16 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
17 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
18 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
|
19 |
2244332 PUMP D'INJECTEUR ATD-T1 More informationQuantity required : 1 |
||||||
|
20 |
237513 O-RING PUMP INJECTION ATD More informationQuantity required : 1 |
||||||
|
21 |
L6410121 PLATE More informationQuantity required : 1 |
||||||
|
22 |
L7215135 - POUSSOIR More informationQuantity required : 1 |
||||||
|
23 |
224660 JOINTE PUMP INJECTION ATD 0, 2MM More informationQuantity required : 1 |
||||||
|
23 |
235526 JOINTE PUMP INJECTION ATD 0, 3MM More informationQuantity required : 1 |
