Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA) VESPA

Moteur eléctrique : 01.02 COMPONENTI MOTORE ELETTRICO

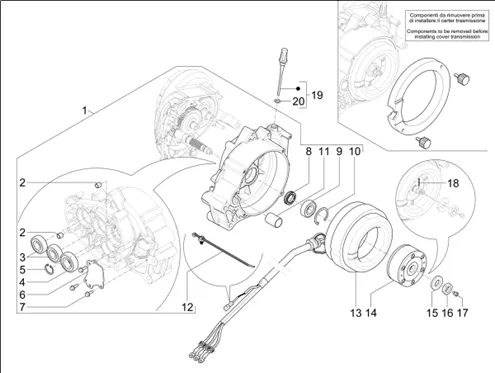

Componenti motore elettrico
Search
1A0220785 - COMPLETE TRANSMISSION CRANKCASE

1
P2R reference P2R reference 216174
Maker reference Maker reference 1A0220785

1A0220785 - COMPLETE TRANSMISSION CRANKCASE

More information

Quantity required : 1

PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957

2
P2R reference P2R reference 72697
Maker reference Maker reference B015957

PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957

More information

Quantity required : 2

B014367 - ROULEMENT

3
P2R reference P2R reference 72644
Maker reference Maker reference B014367

B014367-BEARING

More information

Quantity required : 2

B014368 - ROULEMENT

4
P2R reference P2R reference 72645
Maker reference Maker reference B014368

B014368-BEARING

More information

Quantity required : 1

CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959

5
P2R reference P2R reference 72699
Maker reference Maker reference B015959

CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959

More information

Quantity required : 1

1A010645 - TOLE

6
P2R reference P2R reference 155245
Maker reference Maker reference 1A010645

1A010645-SHEET METAL

More information

Quantity required : 1

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

7
P2R reference P2R reference 68890
Maker reference Maker reference 830061

SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061

More information

Quantity required : 3

GASKET SHAFT TRANSMISSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82878R

8
P2R reference P2R reference 68775
Maker reference Maker reference 82878R

GASKET SHAFT TRANSMISSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82878R

More information

Quantity required : 1

880682 - ROULEMENT

9
P2R reference P2R reference 70738
Maker reference Maker reference 880682

880682-BEARING

More information

Quantity required : 1

CLIPS/CIRCLIPS (35. 7X43. 5X1. 75) OEM PIAGGIO COMMON A LA RANGE-825667

10
P2R reference P2R reference 68559
Maker reference Maker reference 825667

CLIPS/CIRCLIPS (35. 7X43. 5X1. 75) OEM PIAGGIO COMMON A LA RANGE-825667

More information

Quantity required : 1

1A010657 - TUBE

11
P2R reference P2R reference 155241
Maker reference Maker reference 1A010657

1A010657-TUBE

More information

Quantity required : 1

CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143

12
P2R reference P2R reference 127593
Maker reference Maker reference 1D001143

CLAMP SERRE CABLE OEM PIAGGIO COMMON A LA RANGE-1D001143

More information

Quantity required : 1

1P000079 - STATOR DU MOTEUR ELECTRIQUE

13
P2R reference P2R reference 216175
Maker reference Maker reference 1P000079

1P000079-STATOR DU ENGINE ELECTRIC

More information

Quantity required : 1

1A015957 - ROTOR DU MOTEUR ELECTRIQUE

14
P2R reference P2R reference 200112
Maker reference Maker reference 1A015957

1A015957-ROTOR DU ENGINE ELECTRIC

More information

Quantity required : 1

875970 - RESSORT

15
P2R reference P2R reference 70594
Maker reference Maker reference 875970

875970-SPRING

More information

Quantity required : 1

021216 - ECROU S02121600

16
P2R reference P2R reference 111210
Maker reference Maker reference 0212165

021216 NUT S02121600

More information

Quantity required : 1

1A010748 - DETECTEUR

17
P2R reference P2R reference 155244
Maker reference Maker reference 1A010748

1A010748-DETECTEUR

More information

Quantity required : 1

18
P2R reference P2R reference
Maker reference Maker reference 0127705

JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130

19
P2R reference P2R reference 68991
Maker reference Maker reference 832130

JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130

More information

Quantity required : 1

GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085

20
P2R reference P2R reference 68643
Maker reference Maker reference 827085

GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085

More information

Quantity required : 1
