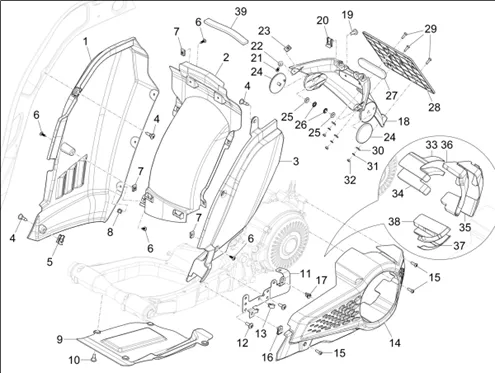

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA)

	P2R reference	216197
	Maker reference	1B010672

1B010672-REAR COVER

	P2R reference	216198
	Maker reference	1B010673

1B010673-REAR COVER

	P2R reference	216199
	Maker reference	1B010671

1B010671-LEFT REAR COVER

	P2R reference	73364
	Maker reference	CM179201

SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	73357
	Maker reference	CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

	P2R reference	72925
	Maker reference	CM017409

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

	P2R reference	109019
	Maker reference	157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

	P2R reference	216200
	Maker reference	1B011585

1B011585-LOWER SWING ARM COVER

	P2R reference	73365
	Maker reference	CM179202

SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202

	P2R reference	216201
	Maker reference	1B010093

1B010093-ELECTRIC DEVICE BRACKET

	P2R reference	73366
	Maker reference	CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

	P2R reference	65811
	Maker reference	191002

191002-SPRING

	P2R reference	216202
	Maker reference	1B010252000G40

1B010252000G40-ENGINE COVER ASSEMBLY

	P2R reference	70728
	Maker reference	880285

SCREW TORX (5X16) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-880285

	P2R reference	65998
	Maker reference	248419

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419

	P2R reference	73404
	Maker reference	D9004468091

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

	P2R reference	92113
	Maker reference	676206000C

MUD FLAP REAR OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-676206000C

	P2R reference	73366
	Maker reference	CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	65403
	Maker reference	0159115

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

	P2R reference	65425
	Maker reference	0166705

WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670

	P2R reference	72924
	Maker reference	CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

	P2R reference	66240
	Maker reference	290315

CATADIOPTRE ROND DE REAR MUDGUARD OEM PIAGGIO 50-125 FLY 2006 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >-290315

	P2R reference	66586
	Maker reference	479882

SPACER RUBBER (7X13X2) OEM PIAGGIO COMMON A LA RANGE-479882

	P2R reference	65796
	Maker reference	180859

AGRAPHE OEM PIAGGIO COMMON A LA RANGE-180859

	P2R reference	67253
	Maker reference	58233R5

CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5

	P2R reference	67322
	Maker reference	584884

DOOR PLATE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-584884

	P2R reference	158977
	Maker reference	581957

SCREW BTR HEAD BOMBEE (4X12) OEM PIAGGIO COMMON A LA RANGE-581957

	P2R reference	65360
	Maker reference	0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

	P2R reference	65414
	Maker reference	0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

	P2R reference	65459
	Maker reference	0201045

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

	P2R reference	200073
	Maker reference	1B006863

1B006863-PLATE DE SILENCER

	P2R reference	200072
	Maker reference	1B006860

1B006860-PLATE DE SILENCER

	P2R reference	216203
	Maker reference	1B010999

1B010999-REAR SHEATH

	P2R reference	216204
	Maker reference	1B011000

1B011000-REAR SHEATH

	P2R reference	216205
	Maker reference	1B011145

1B011145-LOWER SHEATH

	P2R reference	216206
	Maker reference	1B011146

1B011146-LOWER SHEATH

	P2R reference	216207
	Maker reference	1B011521

1B011521-BUFFER
