Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

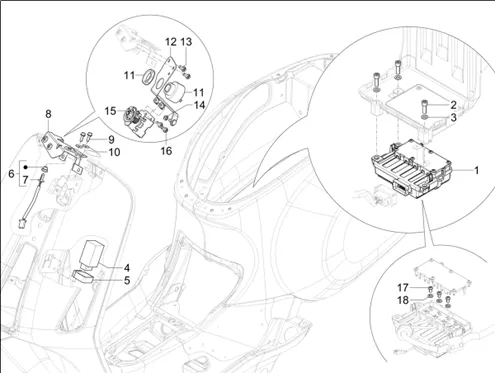

Circuit électrique : 06.06 BOÎTIERS ÉLECTRONIQUES - CAPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1258/Vespa_Primavera_Elettrica_45_Km-h_2023_(EMEA)_06.06.png)
1 |
CM343601-SYSTEME DE GESTION DU ENGINE-BATTERY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/7/8/2/img/140782.JPG)
2 |
2B002171-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
3 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
|
4 |
1D004022-BLINKER DEVICE More informationQuantity required : 1 |
||||||
|
5 |
1D004471-BRACKET Ã - LASTIQUE More informationQuantity required : 1 |
||||||
|
6 |
SENSOR OF TEMPERATURE AMBIANTE OEM PIAGGIO 50 SXR APRILIA 2021 >-1D003720R More informationQuantity required : 1 |
||||||
|
7 |
1B005386-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
8 |
1B005388-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
9 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/1/img/65421.jpg)
10 |
WASHER PLATE (5. 2X16X1. 3) OEM PIAGGIO COMMON A LA RANGE-016603 More informationQuantity required : 2 |
||||||
|
11 |
1D004829-BUZZER More informationQuantity required : 1 |
||||||
|
12 |
1C006841-DEMAND SENSOR BRACKET BRACKET WITH I. P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
13 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 1 |
||||||
|
15 |
1D004208-SENSOR OF POSITION D'ACCELERATEUR More informationQuantity required : 1 |
||||||
|
16 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/0/img/69070.jpg)
17 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-833569 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
18 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
