Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

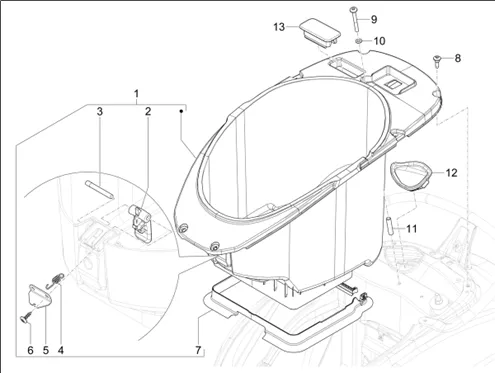

Châssis - parties plastiques - carrosseries : 02.08 LOGEMENT CASQUE - DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1258/Vespa_Primavera_Elettrica_45_Km-h_2023_(EMEA)_02.08.png)
1 |
1B010721-UNDERSEAT COMPARTMENT A CASQUE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/7/img/67167.jpg)
2 |
LEVER DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577861 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/2/img/81222.jpg)
3 |
SPINDLE/PIVOT DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/1/img/81221.jpg)
4 |
SPRING OF RETURN OEM PIAGGIO COMMON A LA RANGE-577399 More informationQuantity required : 1 |
||||||
|
5 |
1B011115-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
6 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 1 |
||||||
|
7 |
1B011414-BATTERY COMPARTMENT GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
8 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
9 |
SCREW TORX (6X55) OEM PIAGGIO COMMON A LA RANGE-CM179306 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
10 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
|
11 |
1B010871-SPACER More informationQuantity required : 1 |
||||||
|
12 |
1B011276-FRAME PLUG More informationQuantity required : 1 |
||||||
|
13 |
1B011694-CAP More informationQuantity required : 1 |
