Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

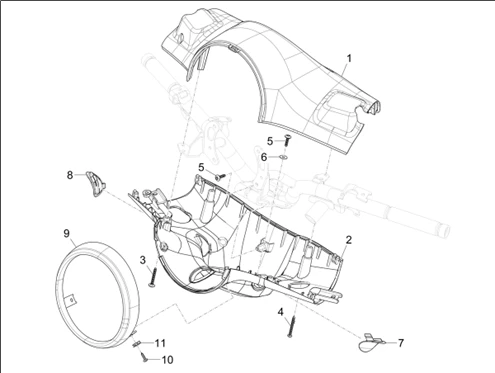

Guidon/direction : 03.02 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1258/Vespa_Primavera_Elettrica_45_Km-h_2023_(EMEA)_03.02.png)
1 |
1B010668000B04-COVER-HANDLEBAR UPPER More informationQuantity required : 1 |
||||||
|
1 |
1B010668000VK-COVER-HANDLEBAR UPPER More informationQuantity required : 1 |
||||||
|
1 |
1B010668000XN2-COVER-HANDLEBAR UPPER More informationQuantity required : 1 |
||||||
|
2 |
1B005469000B04-COVER-HANDLEBAR INFÃ - RIEUR More informationQuantity required : 1 |
||||||
|
2 |
1B005469000VK-COVER INF. HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/8/img/151218.jpg)
2 |
HANDLEBAR COVER LOWER OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > BLACK 98/A-1B005469000XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
3 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
SCREW AUTOTARAUDEUSE (4X35) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-265636 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
5 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
6 |
WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670 More informationQuantity required : 2 |
||||||
|
7 |
67541300B04-CAP LEFT More informationQuantity required : 1 |
||||||
|
7 |
67541300VK-COVER HANDLEBAR LEFT More informationQuantity required : 1 |
||||||
|
7 |
67541300XN2-COVER DRT More informationQuantity required : 1 |
||||||
|
8 |
67543100B04-CAP D. More informationQuantity required : 1 |
||||||
|
8 |
67543100VK-COVER GAU. More informationQuantity required : 1 |
||||||
|
8 |
67543100XN2-COVER GAU. More informationQuantity required : 1 |
||||||
|
9 |
1B010306000K1-SURROUND DE HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
10 |
SCREW AUTOTARAUDEUSE (3, 5X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-018536 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
11 |
NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403 More informationQuantity required : 2 |
