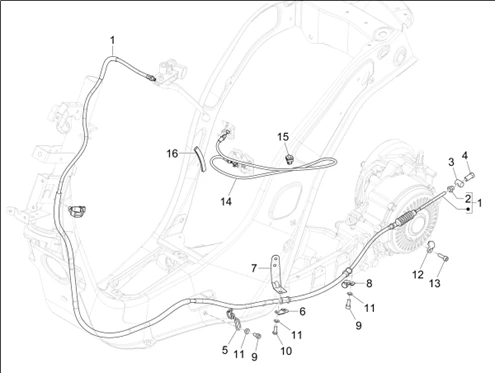

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA) VESPA

Instalation du freins - transmisisons : 05.02 TRANSMISISONS
Transmisisons
Search
1C006851 - TRANSMISSION DE FREIN ARRIERE

1
P2R reference P2R reference 216231
Maker reference Maker reference 1C006851

1C006851-TRANSMISSION OF BRAKE REAR

More information

Quantity required : 1

1C004821 - REGISTER OF THE BRAKE

2
P2R reference P2R reference 215877
Maker reference Maker reference 1C004821

1C004821-REGISTER OF THE BRAKE

More information

Quantity required : 1

PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640

3
P2R reference P2R reference 65794
Maker reference Maker reference 179640

PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640

More information

Quantity required : 1

NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310

4
P2R reference P2R reference 66088
Maker reference Maker reference 270310

NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310

More information

Quantity required : 1

1C004275 - COLLIER

5
P2R reference P2R reference 155361
Maker reference Maker reference 1C004275

1C004275-CLAMP

More information

Quantity required : 1

1C006957 - BRIDE DE SUPPORT DES TRANSMISSIONS

6
P2R reference P2R reference 216232
Maker reference Maker reference 1C006957

1C006957-FLANGE DE BRACKET DES TRANSMISSIONS

More information

Quantity required : 1

1C007689 - ETRIER

7
P2R reference P2R reference 216233
Maker reference Maker reference 1C007689

1C007689-CALIPER

More information

Quantity required : 1

1C003543 - COLLIER

8
P2R reference P2R reference 155359
Maker reference Maker reference 1C003543

1C003543-CLAMP

More information

Quantity required : 1

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099

9
P2R reference P2R reference 68493
Maker reference Maker reference 709099

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-709099

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-873433

10
P2R reference P2R reference 70481
Maker reference Maker reference 873433

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-873433

More information

Quantity required : 1

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

11
P2R reference P2R reference 63841
Maker reference Maker reference 0069765

WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976

More information

Quantity required : 3

PLATE OF FITTING KIT GANIE OEM PIAGGIO COMMON A LA RANGE-564645

12
P2R reference P2R reference 67072
Maker reference Maker reference 564645

PLATE OF FITTING KIT GANIE OEM PIAGGIO COMMON A LA RANGE-564645

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674

13
P2R reference P2R reference 68497
Maker reference Maker reference 709674

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674

More information

Quantity required : 1

CM012874 - LOCK LEVER BATTERY TRASMISSION

14
P2R reference P2R reference 216234
Maker reference Maker reference CM012874

CM012874-LOCK LEVER BATTERY TRASMISSION

More information

Quantity required : 1

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

15
P2R reference P2R reference 72919
Maker reference Maker reference CM013203

CLIPS ATTACHE HARNESS OEM PIAGGIO COMMON A LA RANGE-CM013203

More information

Quantity required : 1

CM023910 - EDGE PROTECTION (L=80)

16
P2R reference P2R reference 216235
Maker reference Maker reference CM023910

CM023910-EDGE PROTECTOR (L = 80)

More information

Quantity required : 1
