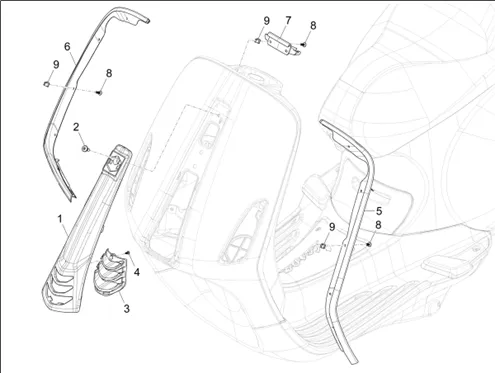

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Vespa Primavera Elettrica 45 Km-h 2023 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.03 TABLIER AVANT
Tablier avant
Search
1B010292000VK - HANDLEBAR COVER

1
P2R reference P2R reference 209075
Maker reference Maker reference 1B010292000VK

1B010292000VK-HANDLEBAR COVER

More information

Quantity required : 1

1B010292000XN2 - HANDLEBAR COVER

1
P2R reference P2R reference 209076
Maker reference Maker reference 1B010292000XN2

1B010292000XN2-HANDLEBAR COVER

More information

Quantity required : 1

1B010292000B04 - HANDLEBAR COVER

1
P2R reference P2R reference 209073
Maker reference Maker reference 1B010292000B04

1B010292000B04-HANDLEBAR COVER

More information

Quantity required : 1

SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202

2
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202

More information

Quantity required : 1

1B010293000K1 - HANDLEBAR COVER

3
P2R reference P2R reference 209080
Maker reference Maker reference 1B010293000K1

1B010293000K1-HANDLEBAR COVER

More information

Quantity required : 1

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

4
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

More information

Quantity required : 1

1B010663000K1 - BORD DE TABLIER G

5
P2R reference P2R reference 209082
Maker reference Maker reference 1B010663000K1

1B010663000K1-EDGE DE LEG SHIELD G

More information

Quantity required : 1

1B010664000K1 - BORD DE TABLIER D

6
P2R reference P2R reference 209084
Maker reference Maker reference 1B010664000K1

EDGE DE LEG SHIELD RIGHT OEM PIAGGIO PRIMAVERA 50-125 E4 E5 E5 + 2024-1B010664000K1

More information

Quantity required : 1

1B010662000K1 - BORD DE TABLIER CENTRAL

7
P2R reference P2R reference 209086
Maker reference Maker reference 1B010662000K1

1B010662000K1-EDGE DE LEG SHIELD CENTRAL

More information

Quantity required : 1

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

8
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 14

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

9
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 14
