Vehicle Exploded View - PIAGGIO TYPHOON 50 MY 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

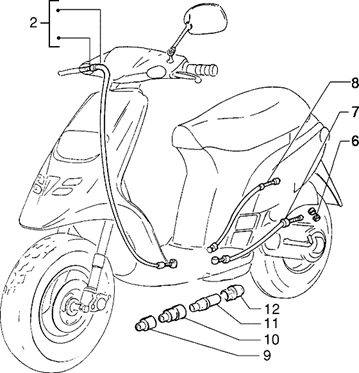

Transmisisons : T34 TRANSMISSION GAZ
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/416/Typhoon_50_MY_2004_T34.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/6/0/img/74160.jpg)
1 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, FREE, ZIP 1998>2004 -070891- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/0/6/img/77306.jpg)
2 |
TRANSMISSION THROTTLE CABLE(FROM HANDLE TO DISPATCHER) "PIAGGIO GENUINE PART" 50 TYPHOON 1995>2003, NRG 1995>1997 -270995 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/8/2/8/img/93828.jpg)
2 |
THROTTLE CABLE KIT (HANDLE TO DISPATCHER) "PIAGGIO GENUINE PARTS" 50 TYPHOON 2004>2006 -957304- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/8/5/img/77185.jpg)
4 |
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, FREE, NTT 1998>2005 -267916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
5 |
031088 - VIS S03108800 More informationQuantity required : 1 |
||||||
6 |
GROUPE VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/7/2/img/77372.jpg)
7 |
CABLE KIT FOR FOR OIL PUMP "PIAGGIO GENUINE PART" 50-125 TYPHOON -272290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/1/7/img/79717.jpg)
7 |
THROTTLE CABLE KIT (FROM DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PART" 50 LIBERTY, NRG, ZIP/GILERA 50 STALKER, RUNNER -560448 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/7/1/img/77371.jpg)
8 |
THROTTLE CABLE KIT (DISPATCHER TO CARB) "PIAGGIO GENUINE PARTS" 50 TYPHOON, NRG 1998>2005 -272289- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/3/img/67283.jpg)
8 |
THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" (FROM SPLITTER TO CARB) "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, TYPHOON 2004>2010 -583334 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/4/img/66084.jpg)
9 |
CASIND END FOR DISPATCHER "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS 50CC 2 STROKE -269572 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
10 |
SPLITTER UPPER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271977 More informationQuantity required : 1 |
||||||
|
11 |
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, FREE, NTT 1998>2005 -267916 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
11 |
THROTTLE CONTROL SPLITTER "PIAGGIO GENUINE PART" 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (3 PARTS KIT WITHOUT PROTECTIONS) -269571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
12 |
SPLITTER LOWER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -271976 More informationQuantity required : 1 |
||||||
|
13 |
|
