Vehicle Exploded View - PIAGGIO TYPHOON 50 MY 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

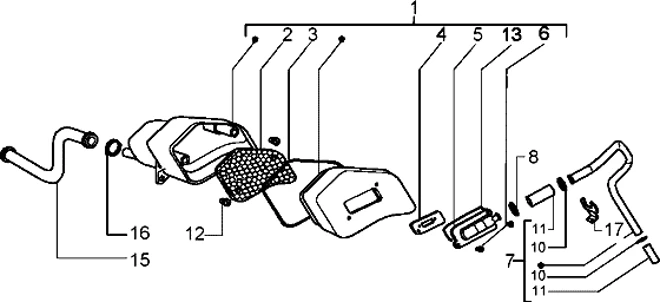

Moteur : T16/A BOITIÎ AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/416/Typhoon_50_MY_2004_T16_A.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/2/3/img/139423.jpg)
1 |
EXHAUST GAZ RECIRCULATION UNIT "PIAGGIO GENUINE PART" COMMUN A LA GAMME SCOOTER 2 STROKE -8318595 More informationQuantity required : 1 |
||||||
1 |
830504 - BOITE More informationQuantity required : 1 |
||||||
|
2 |
830314 - FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/6/img/66716.jpg)
3 |
486943 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/5/img/68695.jpg)
4 |
82778R - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/1/img/68681.jpg)
4 |
S.A.S. DIAPHRAGM "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE -82758R More informationQuantity required : 1 |
||||||
|
5 |
827209 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -478533 More informationQuantity required : 2 |
||||||
|
7 |
830968 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/4/img/69084.jpg)
7 |
PIPE - FROM EXHAUST TO GAZ RECYCLING BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -833740 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
8 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/2/img/68672.jpg)
10 |
HOSE CLAMP FOR GAS RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 2 STROKE -827444 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/1/img/68671.jpg)
11 |
S.A.S. JOINING SLEEVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 827443 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
12 |
015597 - VIS S01559700 More informationQuantity required : 2 |
||||||
|
13 |
486943 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/6/img/68656.jpg)
15 |
827208 - TUBE More informationQuantity required : 1 |
||||||
|
16 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
|
17 |
827794 - PASSE-CABLE More informationQuantity required : 1 |
