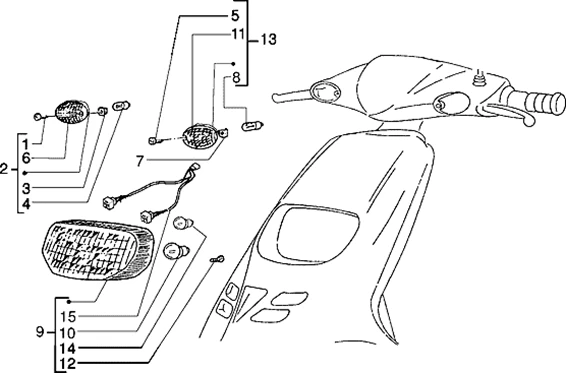

Connexions électriques : T37 PROJECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/416/Typhoon_50_MY_2004_T37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/0/img/65390.jpg)
1 |
015730 - VIS S01573000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/5/3/img/81453.jpg)
2 |
FLASHER-FRONT-RIGHT ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2005 -580658 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/9/7/img/85497.jpg)
2 |
FLASHER-FRONT-RIGHT ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON 2004>2009 -638510 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
3 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
4 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
4 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
|
5 |
015730 - VIS S01573000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/6/img/79626.jpg)
6 |
LENS FOR FLASHER - FRONT RIGHT- ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1994>1999 -498436- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/9/9/img/85499.jpg)
6 |
638512 - CABOCHON AV D TYPHON More informationQuantity required : 1 |
||||||
|
7 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403 More informationQuantity required : 1 |
||||||
|
8 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
||||||
|
8 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/0/0/img/81600.jpg)
9 |
HEAD LIGHT - "PIAGGIO GENUINE PART" 50 TYPHOON 2004>2009 -581578- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/5/2/img/81852.jpg)
9 |
HEADLAMP "PIAGGIO GENUINE PART" 50 TYPHOON 2006>2010 -582975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
10 |
LIGHT BULB FOR HEADLAMP 12V-35/35W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -219528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
10 |
231215 - AMPOULE 12V-35/35W More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/5/img/79625.jpg)
11 |
LENS FOR FLASHER - FRONT LEFT- ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1994>1999 -498435- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/9/8/img/85498.jpg)
11 |
638511 - CABOCHON AV G TYPHON More informationQuantity required : 1 |
||||||
|
12 |
015730 - VIS S01573000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/5/2/img/81452.jpg)
13 |
FLASHER-FRONT-LEFT ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2005 -580657- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/4/9/6/img/85496.jpg)
13 |
FLASHER-FRONT-LEFT ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON 2004>2009 -638509 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
14 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
14 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015 More informationQuantity required : 1 |
||||||
15 |
582963 - FAISCEAU GUIDON More informationQuantity required : 1 |
||||||
|
15 |
FAISCEAU GUIDON |
