Vehicle Exploded View - PIAGGIO TYPHOON 50 MY 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

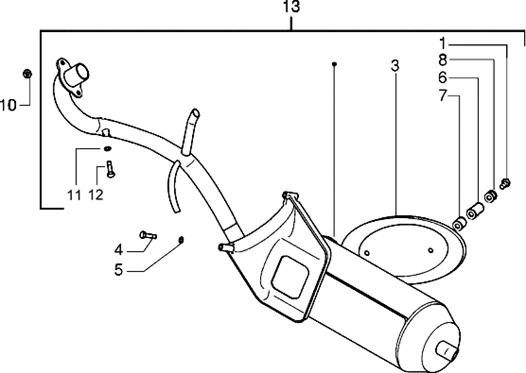

Moteur : T17 SILENCIEUX CATALYTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/416/Typhoon_50_MY_2004_T17.PNG)
1 |
259213 - BOULON More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
1 |
430264 - VIS More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
2 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 3 |
|||||||||
|
3 |
825783 - PROTECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/9/img/68909.jpg)
3 |
EXHAUST PROTECTION - "PIAGGIO GENUINE PART" 50 FLY, NRG, TYPHOON, ZIP/GILERA 50 STALKER/APRILIA 50 SR -830325 More informationQuantity required : 1 |
|||||||||
|
4 |
431740 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
4 |
SCREW - FOR EXHAUST 75X8 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -845591 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/6/7/img/78567.JPG)
5 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
5 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 2 |
|||||||||
|
6 |
431744 - RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
6 |
EXHAUST PROTECTION WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -826118 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/6/6/img/77066.jpg)
7 |
GASKET- FROM PIPE TO EXHAUST MAIN BODY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1995>1999 -259198- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/5/img/68585.jpg)
7 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
8 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
8 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -487665 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/7/9/img/66779.jpg)
8 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC ET MAXISCOOT 125-250-300 -488045 More informationQuantity required : 3 |
|||||||||
|
9 |
433846 - TUBE ECHPT More informationQuantity required : 1 |
|||||||||
|
9 |
436741 - RACCORD ECHPT More informationQuantity required : 1 |
|||||||||
|
9 |
COURBE ECHAPPEM. C19 TYPE RSC01 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
10 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
11 |
EXHAUST WASHER Ø10,2XØ15X2 FOR ALL THE RANGE -016195 More informationQuantity required : 1 |
|||||||||
|
11 |
436502 - VIS More informationQuantity required : 2 |
|||||||||
|
11 |
825784 - PROTECTION More informationQuantity required : 1 |
|||||||||
|
12 |
|
|||||||||
|
12 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
12 |
EXHAUST SCREW/FLANGE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -433122 More informationQuantity required : 1 |
|||||||||
|
13 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/3/0/img/86830.jpg)
13 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
|
13 |
648349 - ECROU More informationQuantity required : 2 |
|||||||||
|
13 |
826290 - POT D'ECHAPPEMENT COMPL. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/6/5/img/75365.jpg)
13 |
EXHAUST "PIAGGIO GENUINE PART" 50 TYPHOON 2004>2016/APRILIA 50 SR MOTARD 2012>2014 -1A001718 More informationQuantity required : 1 |
|||||||||
|
14 |
709003 - RONDELLE More informationQuantity required : 2 |
|||||||||
