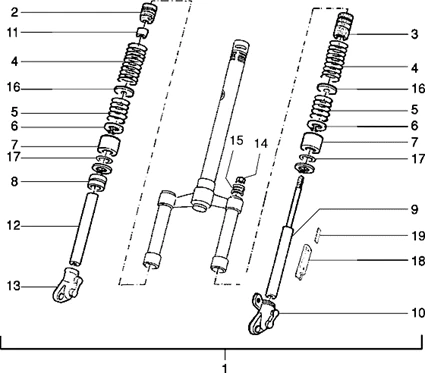

Suspensions-roues : T27 TUBE DE DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/416/Typhoon_50_MY_2004_T27.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/2/9/img/79729.jpg)
1 |
FRONT FORK "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON X-XR OLD MODEL -56067R More informationQuantity required : 1 |
||||||
2 |
463979 - TAMPON More informationQuantity required : 2 |
||||||
|
3 |
SILENCBLOC |
||||||
|
4 |
272443 - RESSORT More informationQuantity required : 2 |
||||||
|
5 |
RESSORT |
||||||
|
6 |
272706 - BAGUE More informationQuantity required : 4 |
||||||
|
7 |
272707 - BAGUE More informationQuantity required : 2 |
||||||
|
8 |
COUPELLE |
||||||
|
9 |
TIGE FOURREAU DROIT |
||||||
|
10 |
SABOT FOURREAU GAUCHE |
||||||
|
11 |
MANCHON SUP |
||||||
|
12 |
FOURREAU INF |
||||||
|
13 |
561674 - SABOT FOURCHE TYPHOON More informationQuantity required : 2 |
||||||
|
14 |
ECROU |
||||||
|
15 |
ENTRETOISE |
||||||
|
16 |
463962 - COUPELLE More informationQuantity required : 2 |
||||||
|
17 |
JOINT |
||||||
|
18 |
573760 - PROTECTION FOURCHE G More informationQuantity required : 1 |
||||||
|
18 |
573761 - PROTECTION FOURCHE D More informationQuantity required : 1 |
||||||
|
19 |
MONOGRAMME |
