Vehicle Exploded View - PIAGGIO TYPHOON 50 MY 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

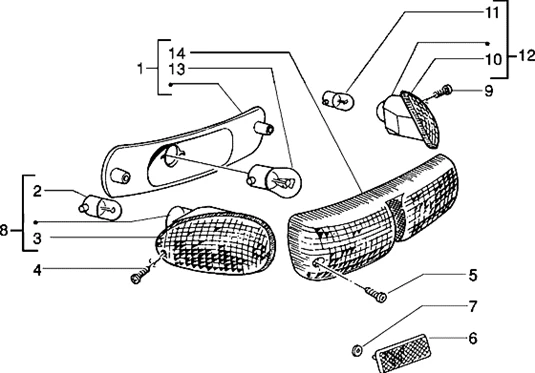

Connexions électriques : T38 FEU AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/416/Typhoon_50_MY_2004_T38.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/6/2/img/77662.jpg)
1 |
292377 - FEU AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
2 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
2 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/7/img/79627.jpg)
3 |
LENS FOR FLASHER-REAR- LEFT- ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004 -498437- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/0/2/img/85502.jpg)
3 |
638515 - CABOCHON AR G TYPHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/5/img/65445.jpg)
4 |
018603 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
5 |
265636 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/6/6/img/85566.jpg)
6 |
638745 - CATADIOPTRE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
7 |
181351 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/6/0/img/77660.jpg)
8 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" 50-125 TYPHOON ANCIEN MODELE -292373- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/0/0/img/85500.jpg)
8 |
FLASHER-REAR-LEFT CLEAR "PIAGGIO GENUINE PART" 50 TYPHOON 2004> -638513 More informationQuantity required : 1 |
||||||
|
9 |
018603 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/8/img/79628.jpg)
10 |
LENS FOR FLASHER-REAR- RIGHT- ORANGE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004 -498438 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/0/3/img/85503.jpg)
10 |
638516 - TRANS CLIGNO AR D More informationQuantity required : 1 |
||||||
|
11 |
LIGHT BULB 12V/10W "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV -181746 More informationQuantity required : 1 |
||||||
|
11 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/6/1/img/77661.jpg)
12 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" 50-125 TYPHOON OLD MODEL -292374- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/5/0/1/img/85501.jpg)
12 |
FLASHER-REAR-RIGHT-CLEAR "PIAGGIO GENUINE PART" 50 TYPHOON 2004> -638514- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
13 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953 More informationQuantity required : 1 |
||||||
14 |
TRANSPARENT FEU ARR |
