Vehicle Exploded View - PIAGGIO TYPHOON 50 MY 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

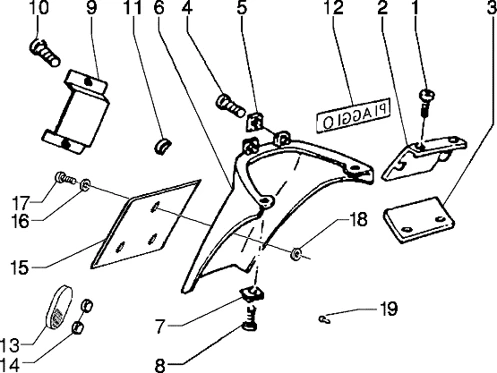

Châssis : T23/A PROTECTION AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/416/Typhoon_50_MY_2004_T23_A.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
1 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 4 |
||||||
2 |
|
||||||
|
2 |
|
||||||
|
2 |
92340000A3 - PARTIE AR SUP BLEU 280 More informationQuantity required : 1 |
||||||
|
2 |
92340000EB - PARTIE AR SUP More informationQuantity required : 1 |
||||||
|
2 |
92340050B2 - PARTIE AR SUP TYPHOON O'NEIL GRIS 693 More informationQuantity required : 1 |
||||||
|
2 |
92340050B5 - PARTIE AR SUP GRIS 682 More informationQuantity required : 1 |
||||||
|
2 |
92340050D1 - PARTIE AR SUP BLEU 251 More informationQuantity required : 1 |
||||||
|
2 |
92340050R7 - PARTIE AR SUP ROUGE 894 More informationQuantity required : 1 |
||||||
|
2 |
9234905 - PARTIE AR SUP NOIR 94 EX.923435 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
3 |
PARTIE AR INF BLEU 251 |
||||||
|
3 |
ELEMENTO UNION |
||||||
|
3 |
PARTIE AR INF |
||||||
|
3 |
92350000EB - PARTIE AR INF More informationQuantity required : 1 |
||||||
|
3 |
REAR SIDE LOWER ELEMENT "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON 1998>2005 RAW TO BE PAINTED -9235005 More informationQuantity required : 1 |
||||||
|
3 |
92350050B5 - PARTIE AR INF GRIS 682 More informationQuantity required : 1 |
||||||
|
3 |
92350050R7 - PARTIE AR INF ROUGE 894 More informationQuantity required : 1 |
||||||
|
3 |
9235005090 - PARTIE AR INF More informationQuantity required : 1 |
||||||
|
3 |
9239005 - PARTIE AR INF BRUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/5/6/2/img/93562.jpg)
3 |
REAR SIDE LOWER ELEMENT "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2005 RED 894 -92390050R7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/8/1/img/77681.jpg)
6 |
MUDGUARD - REAR "PIAGGIO GENUINE PART" 50 TYPHOON 1997>2009 BLACK -292900000C More informationQuantity required : 1 |
||||||
|
6 |
575892000L - PROTECTION More informationQuantity required : 1 |
||||||
|
7 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259348 More informationQuantity required : 2 |
||||||
|
9 |
2924654 - PORTE PLAQUE More informationQuantity required : 1 |
||||||
|
9 |
2929224 - PORTE PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
10 |
SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/1/2/img/77412.jpg)
10 |
273074 - RIVET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/6/9/img/79769.jpg)
11 |
561160 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/0/0/6/img/84006.jpg)
12 |
6214540038 - DECOR GUIDON GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/3/7/0/img/80370.jpg)
12 |
5743990095 - MONOGRAMME 125 PIAGG More informationQuantity required : 1 |
||||||
|
13 |
295983 - CATA AR G More informationQuantity required : 1 |
||||||
|
13 |
295984 - CATA AR D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/8/img/77078.jpg)
14 |
259539 - CLIPS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
15 |
LIGHT BULB 12V5W BA15S TRUNK INTERIOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -071633 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/6/8/img/67968.jpg)
15 |
NUMBER PLATE SUPPORT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -642235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
16 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
||||||
|
16 |
PORTE AMPOULE |
||||||
|
17 |
003055 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
17 |
015996 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
18 |
020104 - ECROU S02010400 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
18 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
19 |
273074 - RIVET More informationQuantity required : 3 |
