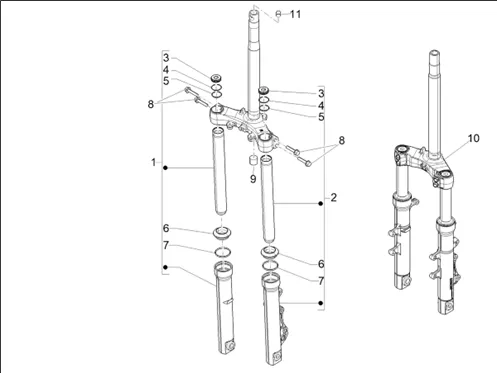

Suspensions - roues : 04.08 COMPOSANTS DE LA FOURCHE (SHOWA)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1235/SR_GT_125_ABS_E5_REPLICA_2024_(EMEA)_04.08.png)
1 |
1C007441 - CHEMISE D. CPL. More informationQuantity required : 1 |
||||||
|
2 |
1C007442 - CHEMISE G. CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/8/6/0/img/162860.jpg)
3 |
1C004149 - BOUCHON More informationQuantity required : 2 |
||||||
|
4 |
1C004139 - ANNEAU ELASTIQUE More informationQuantity required : 2 |
||||||
|
5 |
1C004140 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
6 |
1C004147 - PARE-POUSSIERE More informationQuantity required : 2 |
||||||
|
7 |
1C004146 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
8 |
1C004148 - HEXAG HEAD SCREW More informationQuantity required : 4 |
||||||
|
9 |
601026 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/2/1/img/195821.jpg)
10 |
1C005090 - ASSEMBLY FRONT FORK More informationQuantity required : 1 |
||||||
|
11 |
5A001438 - PLUG More informationQuantity required : 1 |
