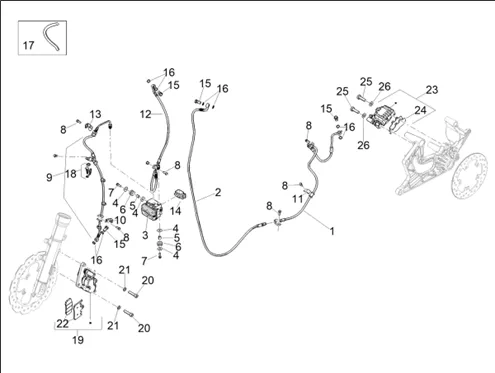

Instalation du freins - transmisisons : 05.02 TUYAUS DU FREINS - ETRIERS DE FREIN (ABS)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1235/SR_GT_125_ABS_E5_REPLICA_2024_(EMEA)_05.02.png)
1 |
1C005438-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
|
2 |
1C005535-HOSE BRAKE More informationQuantity required : 1 |
||||||
|
3 |
1C005821-CENTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
4 |
WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
5 |
SPACER (6X10X11. 4) OEM PIAGGIO COMMON A LA RANGE-273288 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
6 |
GUIDE-CABLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-576565 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
7 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 2 |
||||||
|
8 |
1C001475-SCREW FLANGE More informationQuantity required : 6 |
||||||
|
9 |
2R000566 - SR GT TG2 KIT TUBE + SUPPORT More informationQuantity required : 1 |
||||||
|
10 |
1C001420-CLAMP More informationQuantity required : 1 |
||||||
|
11 |
598795-CLAMP More informationQuantity required : 1 |
||||||
|
12 |
1C005400-FRONT BRAKE HOLE-ABS UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/6/4/img/86964.jpg)
13 |
CLAMP FITTING KIT HOSE OF BRAKE OEM PIAGGIO 125-250-300-350-400-500-530 MP3-649502 More informationQuantity required : 1 |
||||||
|
14 |
CM006906-SPRING More informationQuantity required : 1 |
||||||
|
15 |
2B011672R-SPECIAL SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
16 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 8 |
||||||
|
17 |
CM017719 - JOINT More informationQuantity required : 1 |
||||||
|
18 |
2R000565-TG1 SR GT KIT BRACKET More informationQuantity required : 1 |
||||||
|
19 |
CM256502-CALIPER BRAKE More informationQuantity required : 1 |
||||||
|
20 |
1C001492-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
21 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/4/9/4/img/127494.jpg)
22 |
PLAQUETTES BRAKE FRONT OEM PIAGGIO 50-125 LIBERTY I GET, MEDLEY 2015 >/125 SR GT COMPACT 2021 > APRILIA-1C000760 More informationQuantity required : 1 |
||||||
|
23 |
CM294408-CALIPER BRAKE D. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/5/img/68005.jpg)
24 |
BRAKE PAD OEM PIAGGIO 125-250-300 MP3 AR, 125-250-300 X7 AR, 125-250 X9-EVO AV-RIGHT, 125-250 X-EVO AR, 400 X8, X-EVO FRONT RIGHT (PAIRE)-647079 More informationQuantity required : 1 |
||||||
|
25 |
1C004086-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
26 |
WASHER EVENTAIL (10, 5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-012535 More informationQuantity required : 2 |
