Vehicle Exploded View - APRILIA SR 125 SR GT 125 ABS E5 REPLICA 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

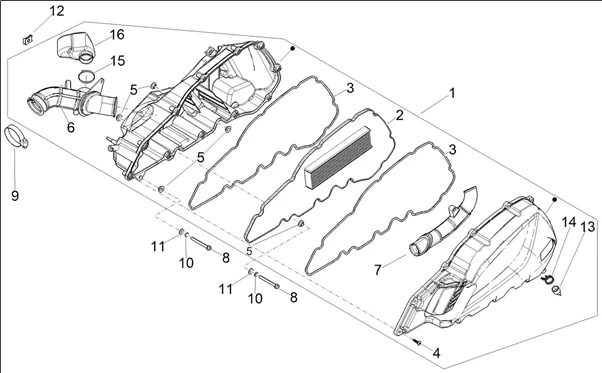

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1235/SR_GT_125_ABS_E5_REPLICA_2024_EMEA_01.45.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/6/img/162786.jpg)
1 |
HOUSING AIR FILTER COMPLETE OEM APRILIA 125 SR GT/125 MEDLEY 2021 >-1A016565 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/7/img/162787.jpg)
2 |
AIR FILTER OEM PIAGGIO 125 MEDLEY 2020 >, 125-200 SR GT COMPACT 2021 >-1A016566 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/8/img/162788.jpg)
3 |
GASKET COVER FLTRE A AIR ORIGNIE PIAGGIO 125 MEDLEY 2020 >/SR GT COMPACT APRILIA 2021 >-1A013599 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
4 |
SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958 More informationQuantity required : 13 |
||||||
5 |
1A006247-HUB More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/2/7/img/166527.jpg)
6 |
SLEEVE EPURATEUR AIR FILTER OEM PIAGGIO 125 MEDLEY/SR GT COMPACT APRILIA 2020 >-1A014650 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/8/9/img/195789.jpg)
7 |
SLEEVE ENTREE AIR OEM APRILIA 125-200 SR GT COMPACT 2021 >-1A013517 More informationQuantity required : 1 |
||||||
|
8 |
1A006274-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
9 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
10 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
11 |
WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/9/0/img/195790.jpg)
13 |
CAPUCHON HOUSING AIR FILTER OEM PIAGGIO 530 MP3 2022 >/125 SR GT COMPACT APRILIA 2021 >-1A007216 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
14 |
CLAMP HOSE (D13) COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM002910 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
15 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/9/img/162789.jpg)
16 |
RESONATEUR VOLUME AIR FILTER OEM PIAGGIO 125 MEDLEY/SR GT COMPACT APRILIA 2020 >-1A014735 More informationQuantity required : 1 |
