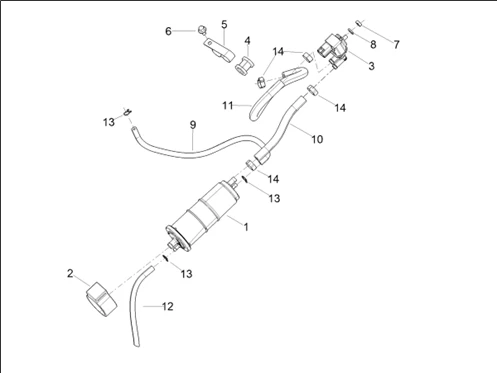

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1235/SR_GT_125_ABS_E5_REPLICA_2024_(EMEA)_02.61.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/3/3/img/174733.jpg)
1 |
1B002848 - CANISTER More informationQuantity required : 1 |
||||||
2 |
1B002849 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/0/6/img/174306.jpg)
3 |
1B008603 - AIR VALVE More informationQuantity required : 1 |
||||||
|
4 |
1B001631 - GROMMET More informationQuantity required : 1 |
||||||
|
5 |
1B009656 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
6 |
B016426 - VIS TEF M6X14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
7 |
020206 - ECROU S02020600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
8 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
|
9 |
CM283452 - PIPE More informationQuantity required : 1 |
||||||
|
10 |
CM177923 - TUYAU SAE J30 R11-A O R12 1/4" L=1125 More informationQuantity required : 1 |
||||||
|
11 |
1B009660 - TUYAU COMPLET More informationQuantity required : 1 |
||||||
|
12 |
CM283443 - TUYAU VAPEURS CARBURANT More informationQuantity required : 1 |
||||||
|
13 |
CM283701 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
14 |
CM001914 - COLLIER More informationQuantity required : 4 |
