Vehicle Exploded View - APRILIA SR 125 SR GT 125 ABS E5 REPLICA 2024 (EMEA) APRILIA

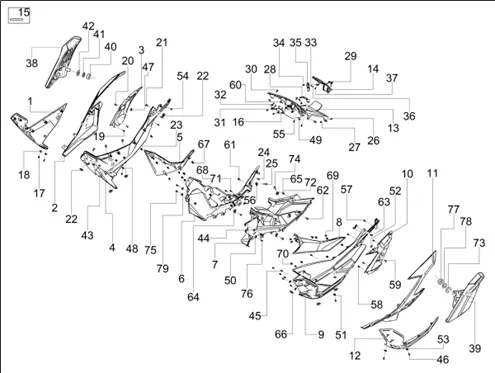

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
Protection centrale - Repose-pieds
Search
1B008104000NS - SPOILER DROITE, NOIR

1
P2R reference P2R reference 213860
Maker reference Maker reference 1B008104000NS

1B008104000NS - SPOILER DROITE, NOIR

More information

Quantity required : 1

1B008104 - RIGHT SPOILER

1
P2R reference P2R reference 195708
Maker reference Maker reference 1B008104

1B008104 - RIGHT SPOILER

More information

Quantity required : 1

1B008902 - FERMETURE

2
P2R reference P2R reference 195710
Maker reference Maker reference 1B008902

1B008902 - FERMETURE

More information

Quantity required : 1

1B008904 - COVER RH

3
P2R reference P2R reference 195711
Maker reference Maker reference 1B008904

1B008904 - COVER RH

More information

Quantity required : 1

1B008115 - REPOSE-PIED DROIT

4
P2R reference P2R reference 195712
Maker reference Maker reference 1B008115

1B008115 - REPOSE-PIED DROIT

More information

Quantity required : 1

1B008123 - PROTECTION LATERALE D

5
P2R reference P2R reference 195716
Maker reference Maker reference 1B008123

1B008123 - PROTECTION LATERALE D

More information

Quantity required : 1

1B008123000NS - PROTECTION LATERALE D

5
P2R reference P2R reference 195713
Maker reference Maker reference 1B008123000NS

1B008123000NS - PROTECTION LATERALE D

More information

Quantity required : 1

1B008125 - PROTECTION CENTRALE D

6
P2R reference P2R reference 195718
Maker reference Maker reference 1B008125

1B008125 - PROTECTION CENTRALE D

More information

Quantity required : 1

1B008124 - PROTECTION CENTRALE G

7
P2R reference P2R reference 195719
Maker reference Maker reference 1B008124

1B008124 - PROTECTION CENTRALE G

More information

Quantity required : 1

1B008122 - PROTECTION LATERALE G

8
P2R reference P2R reference 195724
Maker reference Maker reference 1B008122

1B008122 - PROTECTION LATERALE G

More information

Quantity required : 1

1B008122000NS - PROTECTION LATERALE G

8
P2R reference P2R reference 195720
Maker reference Maker reference 1B008122000NS

1B008122000NS - PROTECTION LATERALE G

More information

Quantity required : 1

1B008114 - TAPIS GAUCHE

9
P2R reference P2R reference 195725
Maker reference Maker reference 1B008114

1B008114 - TAPIS GAUCHE

More information

Quantity required : 1

1B008903 - COUVERCLE GAUCHE

10
P2R reference P2R reference 195726
Maker reference Maker reference 1B008903

1B008903 - COUVERCLE GAUCHE

More information

Quantity required : 1

1B008901 - FERMETURE GAUCHE

11
P2R reference P2R reference 195727
Maker reference Maker reference 1B008901

1B008901 - FERMETURE GAUCHE

More information

Quantity required : 1

1B008103 - LH SPOILER

12
P2R reference P2R reference 195728
Maker reference Maker reference 1B008103

1B008103 - LH SPOILER

More information

Quantity required : 1

1B008103000NS - SPOILER GAUCHE, NOIR

12
P2R reference P2R reference 213861
Maker reference Maker reference 1B008103000NS

1B008103000NS - SPOILER GAUCHE, NOIR

More information

Quantity required : 1

1B008063 - CAPOT CENTRAL

13
P2R reference P2R reference 195730
Maker reference Maker reference 1B008063

1B008063 - CAPOT CENTRAL

More information

Quantity required : 1

1B008064 - TRAPPE A CARBURANT

14
P2R reference P2R reference 195731
Maker reference Maker reference 1B008064

1B008064 - TRAPPE A CARBURANT

More information

Quantity required : 1

CM006321 - PACKING

15
P2R reference P2R reference 195746
Maker reference Maker reference CM006321

CM006321 - PACKING

More information

Quantity required : 1

1B010103 - PLATE

16
P2R reference P2R reference 195742
Maker reference Maker reference 1B010103

1B010103 - PLATE

More information

Quantity required : 1

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

17
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

18
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

19
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

More information

Quantity required : 3

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 x16) -CM178606

20
P2R reference P2R reference 96280
Maker reference Maker reference CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

21
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

More information

Quantity required : 4

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

22
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 4

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

23
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 5

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

24
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 1

CM179302 - VIS

25
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

CM179302 - VIS

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

26
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

More information

Quantity required : 2

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

27
P2R reference P2R reference 109019
Maker reference Maker reference 157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716

More information

Quantity required : 2

1B010002 - PLATE

28
P2R reference P2R reference 195734
Maker reference Maker reference 1B010002

1B010002 - PLATE

More information

Quantity required : 1

1B010001 - SPRING FOR FUEL DOOR

29
P2R reference P2R reference 195735
Maker reference Maker reference 1B010001

1B010001 - SPRING FOR FUEL DOOR

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

30
P2R reference P2R reference 73359
Maker reference Maker reference CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

More information

Quantity required : 2

1B008075 - CARRIER DOOR PIN

31
P2R reference P2R reference 195741
Maker reference Maker reference 1B008075

1B008075 - CARRIER DOOR PIN

More information

Quantity required : 1

SPRING FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" BEVERLY, MP3, X8, X9, X10, X-EVO -575604

32
P2R reference P2R reference 67117
Maker reference Maker reference 575604

SPRING FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" BEVERLY, MP3, X8, X9, X10, X-EVO -575604

More information

Quantity required : 1

FUEL TRAPDOOR BRACKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -AP8161182

33
P2R reference P2R reference 72011
Maker reference Maker reference AP8161182

FUEL TRAPDOOR BRACKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -AP8161182

More information

Quantity required : 1

577399 - RESSORT

34
P2R reference P2R reference 81221
Maker reference Maker reference 577399

577399 - RESSORT

More information

Quantity required : 1

1B009199 - LEVER

35
P2R reference P2R reference 195739
Maker reference Maker reference 1B009199

1B009199 - LEVER

More information

Quantity required : 1

1B009532 - PIN

36
P2R reference P2R reference 195740
Maker reference Maker reference 1B009532

1B009532 - PIN

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

37
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

More information

Quantity required : 1

1B006637 - REPOSE-PIEDS PASSAGER D COMPLET

38
P2R reference P2R reference 195674
Maker reference Maker reference 1B006637

1B006637 - REPOSE-PIEDS PASSAGER D COMPLET

More information

Quantity required : 1

1B006637000NU - REPOSE-PIEDS PASSAGER D COMPLET

38
P2R reference P2R reference 166533
Maker reference Maker reference 1B006637000NU

1B006637000NU - REPOSE-PIEDS PASSAGER D COMPLET

More information

Quantity required : 1

1B006635 - REPOSE-PIEDS PASSAGER G COMPLET

39
P2R reference P2R reference 195675
Maker reference Maker reference 1B006635

1B006635 - REPOSE-PIEDS PASSAGER G COMPLET

More information

Quantity required : 1

1B006635000NU - REPOSE-PIEDS PASSAGER G COMPLET

39
P2R reference P2R reference 166534
Maker reference Maker reference 1B006635000NU

1B006635000NU - REPOSE-PIEDS PASSAGER G COMPLET

More information

Quantity required : 1

020110 - ECROU

40
P2R reference P2R reference 65465
Maker reference Maker reference 0201105

020110 - ECROU

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

41
P2R reference P2R reference 65346
Maker reference Maker reference 0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

More information

Quantity required : 1

006173 - RONDELLE S00617300

42
P2R reference P2R reference 63804
Maker reference Maker reference 0061735

006173 - RONDELLE S00617300

More information

Quantity required : 1

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

43
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 10

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

44
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 2

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

45
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 10

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

46
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

47
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 1

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

48
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 3

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

49
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

50
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

51
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 3

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

52
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 1

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

53
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

54
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

55
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

More information

Quantity required : 4

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

56
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

57
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

58
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

More information

Quantity required : 3

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 x16) -CM178606

59
P2R reference P2R reference 96280
Maker reference Maker reference CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606

More information

Quantity required : 1

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

60
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

More information

Quantity required : 3

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

61
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

More information

Quantity required : 2

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

62
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

More information

Quantity required : 2

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

63
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

More information

Quantity required : 4

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

64
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 2

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

65
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 2

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

66
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 4

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

67
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 5

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

68
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 2

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

69
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 5

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

70
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

More information

Quantity required : 5

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

71
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

72
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

More information

Quantity required : 2

006173 - RONDELLE S00617300

73
P2R reference P2R reference 63804
Maker reference Maker reference 0061735

006173 - RONDELLE S00617300

More information

Quantity required : 1

CM179302 - VIS

74
P2R reference P2R reference 73367
Maker reference Maker reference CM179302

CM179302 - VIS

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

75
P2R reference P2R reference 73359
Maker reference Maker reference CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

More information

Quantity required : 2

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

76
P2R reference P2R reference 73359
Maker reference Maker reference CM178604

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604

More information

Quantity required : 2

020110 - ECROU

77
P2R reference P2R reference 65465
Maker reference Maker reference 0201105

020110 - ECROU

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

78
P2R reference P2R reference 65346
Maker reference Maker reference 0125355

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535

More information

Quantity required : 1

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

79
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

More information

Quantity required : 2

All the exploded views of this vehicle

Filter :
Or choose :
