Vehicle Exploded View - APRILIA SR 125 SR GT 125 ABS E5 REPLICA 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

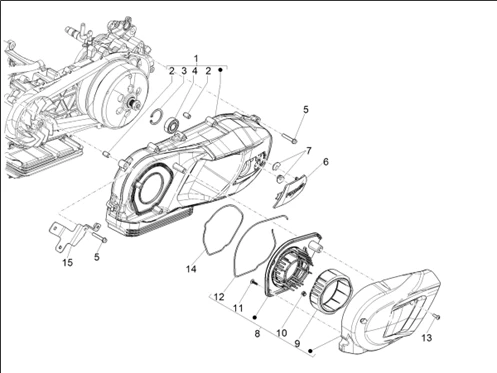

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1235/SR_GT_125_ABS_E5_REPLICA_2024_(EMEA)_01.15.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/1/6/img/195816.jpg)
1 |
COVER DE TRANSMISSION OEM APRILIA 125-200 SR GT COMPACT 2021 >-1A021549 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
2 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
3 |
CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
4 |
BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/0/0/img/75300.JPG)
5 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-1A000348 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/1/7/img/195817.jpg)
6 |
COVER DU COVER DE LA TRANSMISSION OEM APRILIA 125-200 SR GT COMPACT 2021 >-1A020437 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/7/8/img/70378.jpg)
7 |
BUFFER/INSERT ARRET MOUNTING COVER TRANMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-871458 More informationQuantity required : 2 |
||||||
8 |
1A015555-COVER COOLING COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/6/0/img/139560.jpg)
9 |
FILTER COOLING CASING TRANSMISSION OEM PIAGGIO 125-150-200 MEDLEY, SR GT COMPACT APRILIA 2016 >-1A004447 More informationQuantity required : 2 |
||||||
|
10 |
B015908-BUSH More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
||||||
|
12 |
GASKET COVER DE COOLING OEM PIAGGIO 125 MEDLEY 2016 >-1A004448 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/7/img/72707.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X14) OEM PIAGGIO COMMON A LA RANGE-B016455 More informationQuantity required : 3 |
||||||
|
14 |
1A003394-GASKET COVER COOLING More informationQuantity required : 1 |
||||||
|
15 |
1A024034-SPRING BRACKET More informationQuantity required : 1 |
