Vehicle Exploded View - APRILIA SR 125 SR GT 125 ABS E5 REPLICA 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

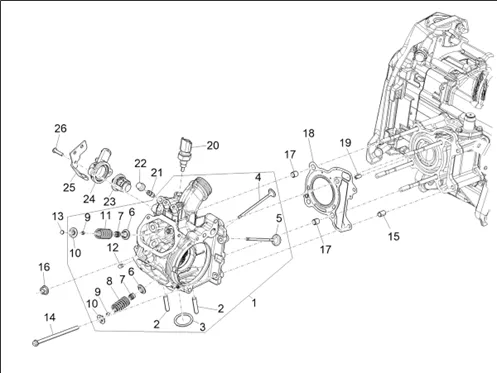

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1235/SR_GT_125_ABS_E5_REPLICA_2024_(EMEA)_01.10.png)
1 |
CYLINDER HEAD COMPLETE OEM PIAGGIO 125 MEDLEY, GTS 2021 >/125 SR GT COMPACT APRILIA 2021 >-1A020730 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/8/img/66478.jpg)
2 |
STUD (M7) MOUNTING EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-435629 More informationQuantity required : 2 |
||||||
|
3 |
GASKET EXHAUST OEM PIAGGIO 125 GTS/MEDLEY 2016 >-1A001528 More informationQuantity required : 1 |
||||||
|
4 |
1A012280-VALVE D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
|
5 |
1A016568-INTAKE VALVE 21 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
6 |
CUP LOWER VALVE OEM PIAGGIO 125-150-200-250-300 COMMON A LA RANGE-483711 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/2/0/img/166520.JPG)
7 |
BUSH ETANCHEITE VALVE OEM PIAGGIO COMMON ALA RANGE-1A013679 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/8/6/img/139486.JPG)
8 |
SPRING OF RETURN VALVE EXHAUST OEM PIAGGIO 125 GTS/MEDLEY APRILIA 125 SR GT-1A001651 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/4/5/img/94645.jpg)
9 |
HALF LUNE VALVE OEM PIAGGIO 125 MEDLEY, GTS, PRIMAVERA 2013 >/SR GT APRILIA 2021 >-B015484 More informationQuantity required : 8 |
||||||
|
10 |
B013833-RONDELLES VALVE More informationQuantity required : 4 |
||||||
|
11 |
SPRING OF RETURN VALVE INTAKE OEM PIAGGIO 125 GTS/MEDLEY APRILIA 125 SR GT-1A014782 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
12 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 1 |
||||||
|
13 |
1A016567-VALVE CUP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/2/img/72732.jpg)
14 |
SCREW FLANGE TH (6X112. 5) OEM PIAGGIO COMMON A LA RANGE-B016807 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
15 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
|
16 |
B015971 - ECROU More informationQuantity required : 4 |
||||||
|
17 |
B015969 - PION DE CENTRAGE N°2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/0/9/0/img/172090.jpg)
18 |
CYLINDER HEAD GASKET OEM PIAGGIO 125 GTS, MEDLEY 2016 >-1A014364 More informationQuantity required : 1 |
||||||
|
19 |
1A001364-GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
20 |
SONDE TEMPERATURE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER/GILERA 50 SMT, RCR 2018 >/DERBI SENDA 2018 >-1A021287R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
21 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/7/img/65657.jpg)
22 |
063435-CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/4/5/img/68745.jpg)
23 |
THERMOSTAT/CALORSTAT MAXI SCOOTER OEM PIAGGIO 125-250-300 MP3, BEVERLY, VESPA GTS, 125-250 X-EVO, X9,/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC, SPORT-CITY-82831R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/1/3/img/139513.jpg)
24 |
COVER DU THERMOSTAT OEM PIAGGIO 125 MEDLEY, MYMOOVER, GTS 2016 >/125-200 SR GT COMPACT APRILIA 2021 >-1A002603 More informationQuantity required : 1 |
||||||
|
25 |
1A017125-BRACKET CABLE More informationQuantity required : 1 |
||||||
|
26 |
1A004456-SCREW More informationQuantity required : 2 |
