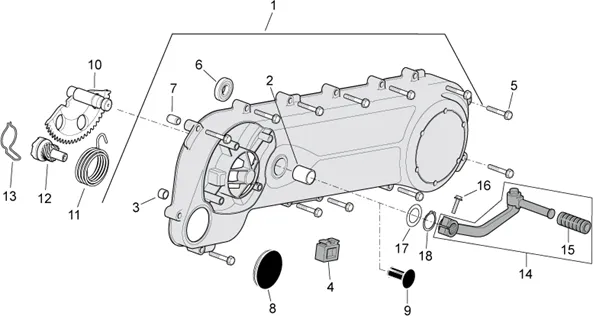

Moteur : 29.45 COUVERCLE TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_29.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/6/img/68756.jpg)
1 |
COVER DE TRANSMISSION OEM PIAGGIO 50 2T TYPHOON 2006 > 2010, NRG 2006 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/GILERA 50 RUNNER 2000 >/APRILIA 50 SR H2O 2004 >, MOJITO 2004 >-8284535 More informationQuantity required : 1 |
||||||
1 |
COVER DE TRANSMISSION OEM APRILIA 50 SR H2O INJECTION 2003 > 2014-8298225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/7/img/66167.jpg)
2 |
BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
3 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/7/img/66537.jpg)
4 |
BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
5 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/4/img/68524.jpg)
6 |
BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/6/img/66646.jpg)
8 |
CAP/OBTURATEUR COVER TRANSMISSION OU LEG SHIELD INNER ZIP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-483859 More informationQuantity required : 1 |
||||||
|
9 |
829820-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/7/img/68967.jpg)
10 |
SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/3/img/66223.jpg)
11 |
SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/3/img/66633.jpg)
12 |
OEM SCOOTER KICK SCOOT OEM PIAGGIO 50 2T ET 4T FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA LX, PRIMAVERA/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-483537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
13 |
SPRING OF KICK OEM PIAGGIO 50-125 LIBERTY, VESPA LX, VESPA-S, 50 TYPHOON, 50 FLY, 50 NRG/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, MOJITO-288673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/8/img/66168.jpg)
14 |
KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/9/img/66169.jpg)
15 |
PROTECTOR/RUBBER DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286217 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
16 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
16 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/3/img/66443.jpg)
17 |
WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
18 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
