Vehicle Exploded View - APRILIA SR 50 Carb My 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

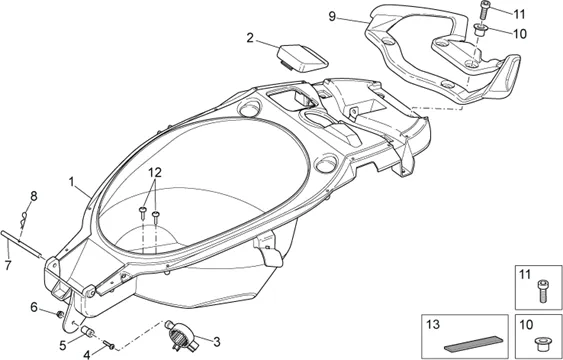

Chassis : 28.14 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_28.14.PNG)
1 |
AP8268041-BAULOTTO PORTACASCO * More informationQuantity required : 1 |
||||||
|
2 |
AP8268084-SPORTELLO SONDA BENZINA More informationQuantity required : 1 |
||||||
|
3 |
AP8220592-BRACKET PUMP FUEL More informationQuantity required : 1 |
||||||
|
4 |
AP8225369-SCREW More informationQuantity required : 1 |
||||||
|
5 |
AP8234195-ROD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
|
7 |
AP8221321-PIVOT CHARNIERE SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
8 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643 More informationQuantity required : 1 |
||||||
|
9 |
AP8268062-MANIGLIA PASS. NERA More informationQuantity required : 1 |
||||||
|
10 |
AP8121679-" BUSH EN " " T " " " More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
11 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
12 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
13 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 2 |
