Vehicle Exploded View - APRILIA SR 50 Carb My 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

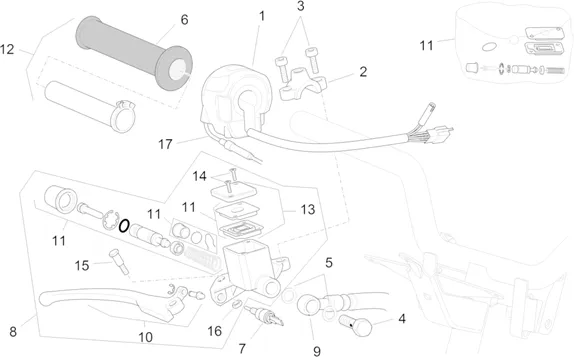

Chassis : 28.19 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/735/SR_50_Carb_My_2014_28.19.PNG)
1 |
860109-DEVIATEUR FEUX DTE * More informationQuantity required : 1 |
||||||
|
1 |
AP8224620-DEVIOLUCI DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/5/img/72225.jpg)
2 |
HALF CLAMP GRIP RIGHT OEM PIAGGIO 50 SR H2O APRILIA 2004 >-AP8213581 More informationQuantity required : 1 |
||||||
|
3 |
AP8213582-SCREW CAPPELLOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
4 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/7/5/img/71375.jpg)
6 |
PAIRE GRIP RUBBER OEM PIAGGIO 50 SR APRILIA 2004 >-AP8118699 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
7 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
8 |
CM081209 - HYDRAULIC BRAKE PUMP More informationQuantity required : 1 |
||||||
|
9 |
AP8213546-TUBO BRAKE ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/6/img/67436.jpg)
10 |
LEVER BRAKE MAXI SCOOTER OEM PIAGGIO 125-250-400-500 MP3, BEVERLY, X8 2004 > 2006, X-EVO 2007 >/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO LEFT/RIGHT (HENG-TONG)-600475 More informationQuantity required : 1 |
||||||
|
11 |
AP8213600-KIT REVISIONE PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/2/1/img/56721.jpg)
12 |
SLEEVE/THROTTLE GRIP OEM PIAGGIO APRILIA 50 SR H2O 2004 >-AP8218639 More informationQuantity required : 1 |
||||||
|
13 |
AP8213598-COVER TANK More informationQuantity required : 1 |
||||||
|
14 |
AP8213583-SCREW COVER PUMP More informationQuantity required : 2 |
||||||
|
15 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
16 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/0/img/67250.jpg)
17 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DEDOUBLEUR/CARBURETTOR) OEM PIAGGIO 50 ZIP SP, NRG MP3 1998 > 2005/GILERA 50 RUNNER 1998 > 2005-582256 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/0/2/img/56602.jpg)
17 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE (DE LA GRIP VERS REPARTITEUR) OEM PIAGGIO APRILIA 50 SR H2O 2004 >-AP8214239 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/0/4/img/56604.jpg)
17 |
CABLE/CONTROL/TRANSMISSION DE THROTTLE OEM PIAGGIO APRILIA 50 SR H2O 2018 >-AP8214241 More informationQuantity required : 1 |
